Features
- Aerator Laminar stream
- Connection Copper inlet pipes
- Lever/Handle Long shape, Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 48 mm ceramic eco cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Inner body made of DZR brass, Waterways without nickel coating, Rapid installation system
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Eco-flow at 3 bar 6 l/min
- Flow-rate at 3 bar 12 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size Ø 10 mm
- DN-size (nominal dimension) DN15
- Hot water supply max. +80°C
- Material Brass

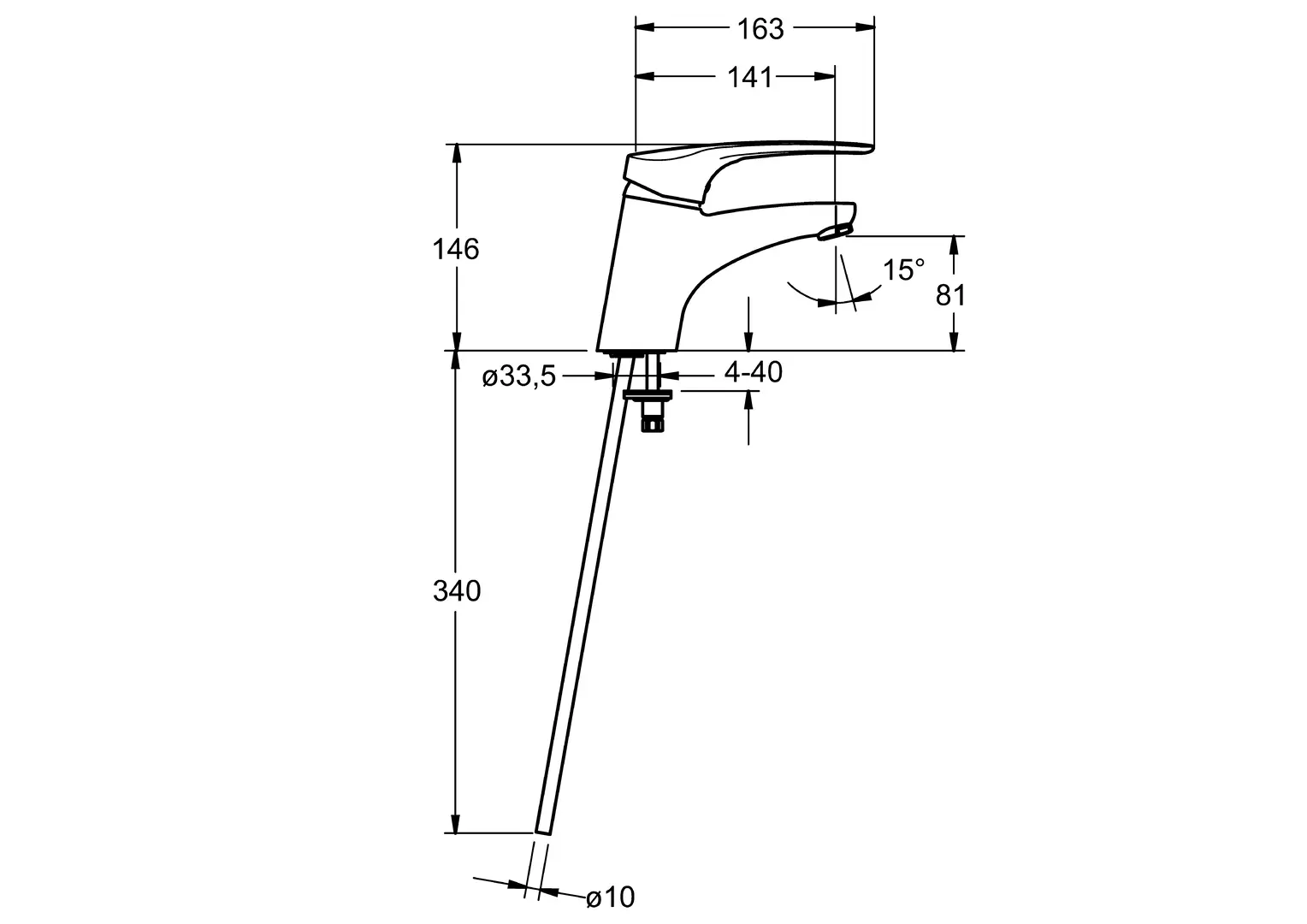

- Projection 141 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Approvals and Declarations
- KIWA K6116/08
SP01092183 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 1 |
|
Long lever, L=138 (Chrome) |
|
|
| 1 |
|
Lever, L=93 mm (Chrome) |
|
|
| 1.1 |
|
Screw, M5x8, SW2.5 |
|
|
| 1.2 |
|
Bushing |
|
|
| 1.3 |
|
Symbol plug (Grey) |
|
|
| 2 |
|
Covering cap (Chrome) |
|
|
| 3 |
|
Eye screw, M50x1, SW45 |
|
|
| 3.1 |
|
O-ring, d 43x2.5 |
|
|
| 4 |
|
Cartridge, 4.8 Eco-Top |
|
Download |
| 4 |
|
Cartridge, 4.8 eco |
|
Download |
| 4.1 |
|
Hot water limiter |
|
|
| 5.1 |
|
Pop-up operating rod (Chrome) |
|
|
| 5.2 |
|
Swivel joint |
|
|
| 5.3 |
|
Bottom seal |
|
|
| 5.5 |
|
Fixing plate
Discontinued
|
|
|
| 5.6 |
|
Screw, M8x1, SW13
Discontinued
|
|
|
| 5.7 |
|
Fixing set |
|
|
| 5.8 |
|
Installation coupling pair (Chrome) |
|
|
| 5.9 |
|
Coupling pipe, L=430, M10x1 |
|
|
| 5.11 |
|
O-ring, d 7.65x1.78 |
|
|
| 5.12 |
|
Fixing screw, M8x1, L=140 |
|
|
| 6 |
|
Aerator, M24x1 (2011-) |
|
|
| 7 |
|
Pop-up waste (Chrome) |
|
|
