Features
- Aerator PCA® - constant flow rate regardless of pressure variations
- Connection Copper inlet pipes
- Extensions Pop-up waste with draw-rod
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Inner body made of DZR brass, Rapid installation system
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar (with flow controller) 6 l/min

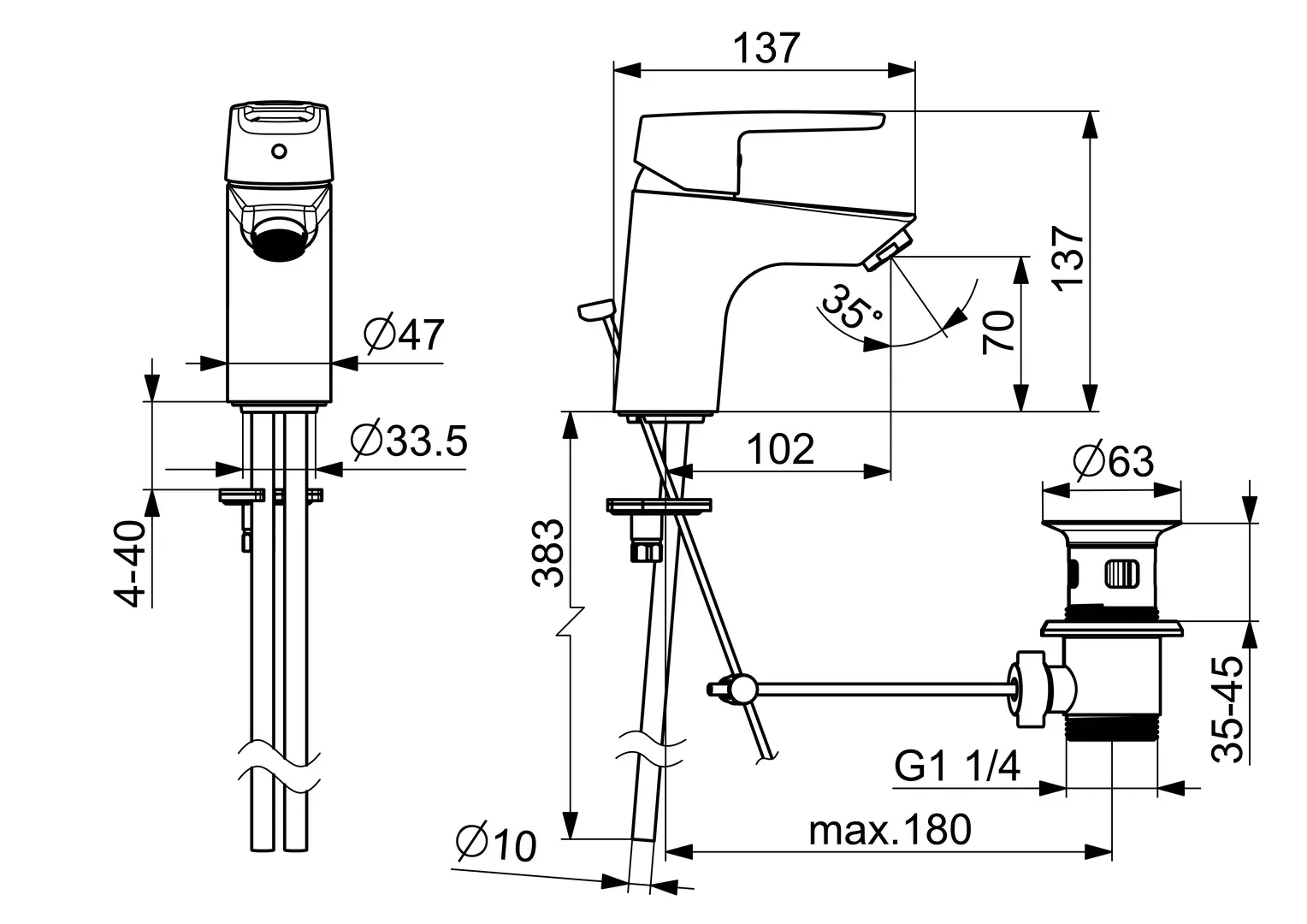

Technical properties
- Connection size Ø 10 mm
- DN-size (nominal dimension) DN15
- Hot water supply max. +80°C
- Material Brass
- Projection 103 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO3822)
Approvals and Declarations
- KIWA K6116/08
Sustainability
- EPD module A1 (kg CO2 eq.) 7,05
- EPD module A1-A3 (kg CO2 eq.) 8,05
- EPD module A2 (kg CO2 eq.) 0,34
- EPD module A3 (kg CO2 eq.) 0,67
- EPD module A4 (kg CO2 eq.) 0,22
- EPD module B7 (kg CO2 eq.) 1854,00
- EPD module C2 (kg CO2 eq.) 0,01
- EPD module C3 (kg CO2 eq.) 0,02
- EPD module C4 (kg CO2 eq.) 0,06
- EPD module D (kg CO2 eq.) -5,73
+SP51402293+SP51412293.webp)
SP51402293 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Long lever (Chrome) |
|
|
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Covering cap, 33x3 mm (Chrome) |
|
|
| 03 |
|
Temperature adjustment limiter
Discontinued
|
|
|
| 04 |
|
Tightening nut, M40x1 |
|
|
| 05 |
|
Cartridge, 3.5 Classic |
|
Download |
| 06 |
|
Aerator, M24x1 A, low pressure (Chrome) |
|
|
| 06 |
|
Aerator, M24x1, 6 l/min (Chrome) |
|
|
| 07 |
|
Fixing screw, M8x1, L=140 |
|
|
| 08 |
|
Fixing set |
|
|
| N.I. |
|
Pop-up waste, (2019-) (Chrome) |
|
|
| N.I. |
|
Pop-up operating rod |
|
|
| N.I. |
|
Pop-up waste (Chrome) |
|
|
| N.I. |
|
Flexible pipe, L=430, G3/8-M10x1 |
|
|
