Features
- Aerator PCA® - constant flow rate regardless of pressure variations, Standard aerator
- Connection Flexible inlet pipes
- Extensions Pop-up waste with draw-rod
- Lever/Handle Long shape, Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Inner body made of DZR brass, 3S-installation system for safe and simple mounting
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar (with flow controller) 6 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 114 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Sustainability
- EPD module A1 (kg CO2 eq.) 9,30
- EPD module A1-A3 (kg CO2 eq.) 10,63
- EPD module A2 (kg CO2 eq.) 0,45
- EPD module A3 (kg CO2 eq.) 0,88
- EPD module A4 (kg CO2 eq.) 0,29
- EPD module B7 (kg CO2 eq.) 1854,00
- EPD module C2 (kg CO2 eq.) 0,02
- EPD module C3 (kg CO2 eq.) 0,02
- EPD module C4 (kg CO2 eq.) 0,08
- EPD module D (kg CO2 eq.) -7,56
+45022186.webp)

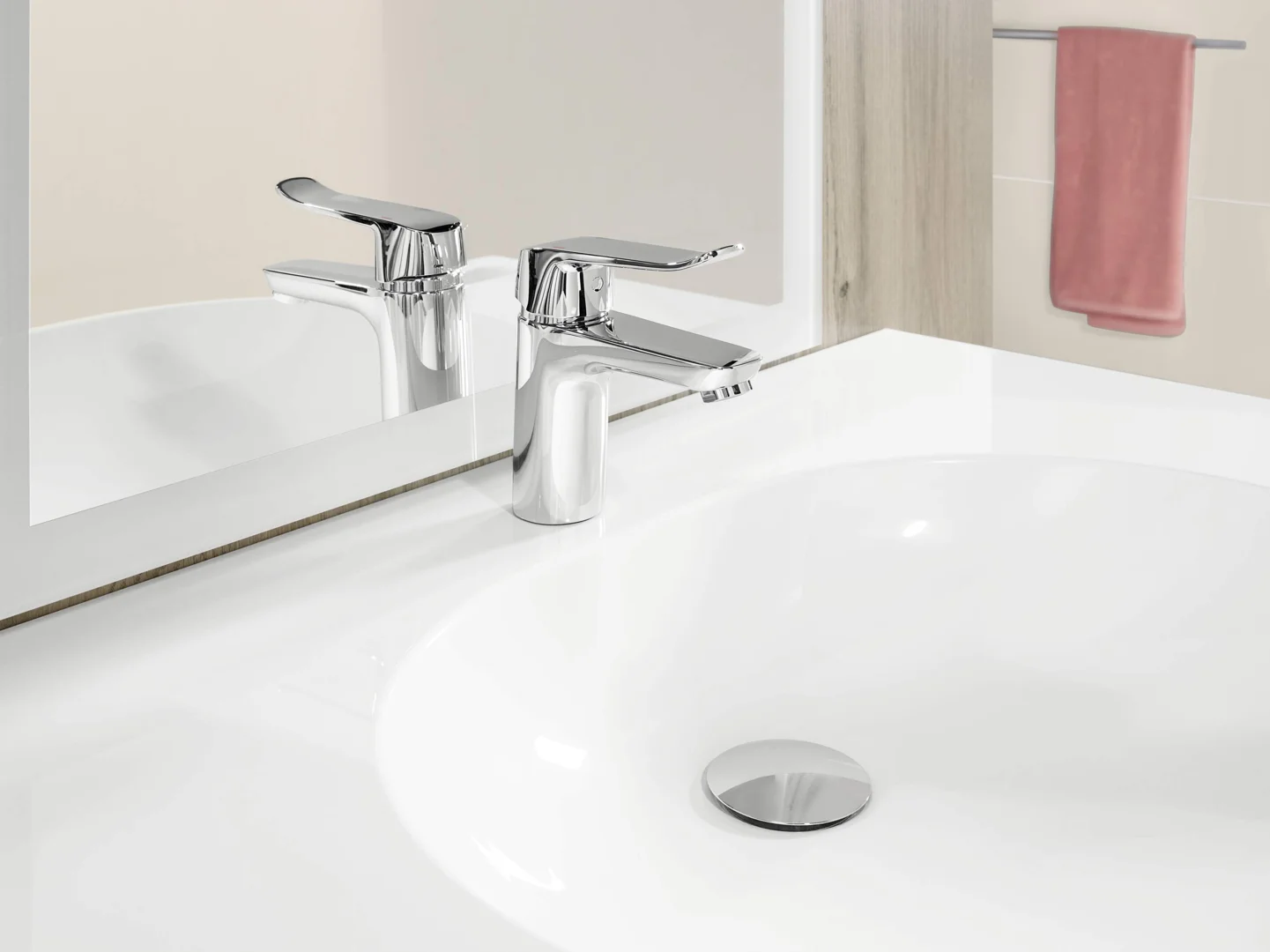

SP45022186 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever, L=136 (Chrome) |
|
|
| 01 |
|
Long lever, L=162 (Chrome) |
|
|
| 02 |
|
Covering cap (Chrome) |
|
|
| 03 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 04 |
|
Cartridge, 4.0 Classic |
|
Download |
| 05 |
|
Fixing screw, M8x1, L=130 |
|
|
| 06 |
|
Fixing set |
|
Download |
| 07 |
|
Aerator, M24x1, 6 l/min (Chrome) |
|
|
| 07 |
|
Aerator, M24x1 STD PL HC A Laminar (2013-) (Chrome) |
|
|
| 08 |
|
Bottom seal |
|
|
| N.I. |
|
Pop-up waste, (2019-) (Chrome) |
|
|
| N.I. |
+59914162_catalog.webp)
|
Bidetta hand shower (Chrome) |
|
|
| N.I. |
|
Hand shower holder (Chrome) |
|
|
| N.I. |
|
Shower hose, L=1750 (Satin) |
|
|
