HANSAVANTIS

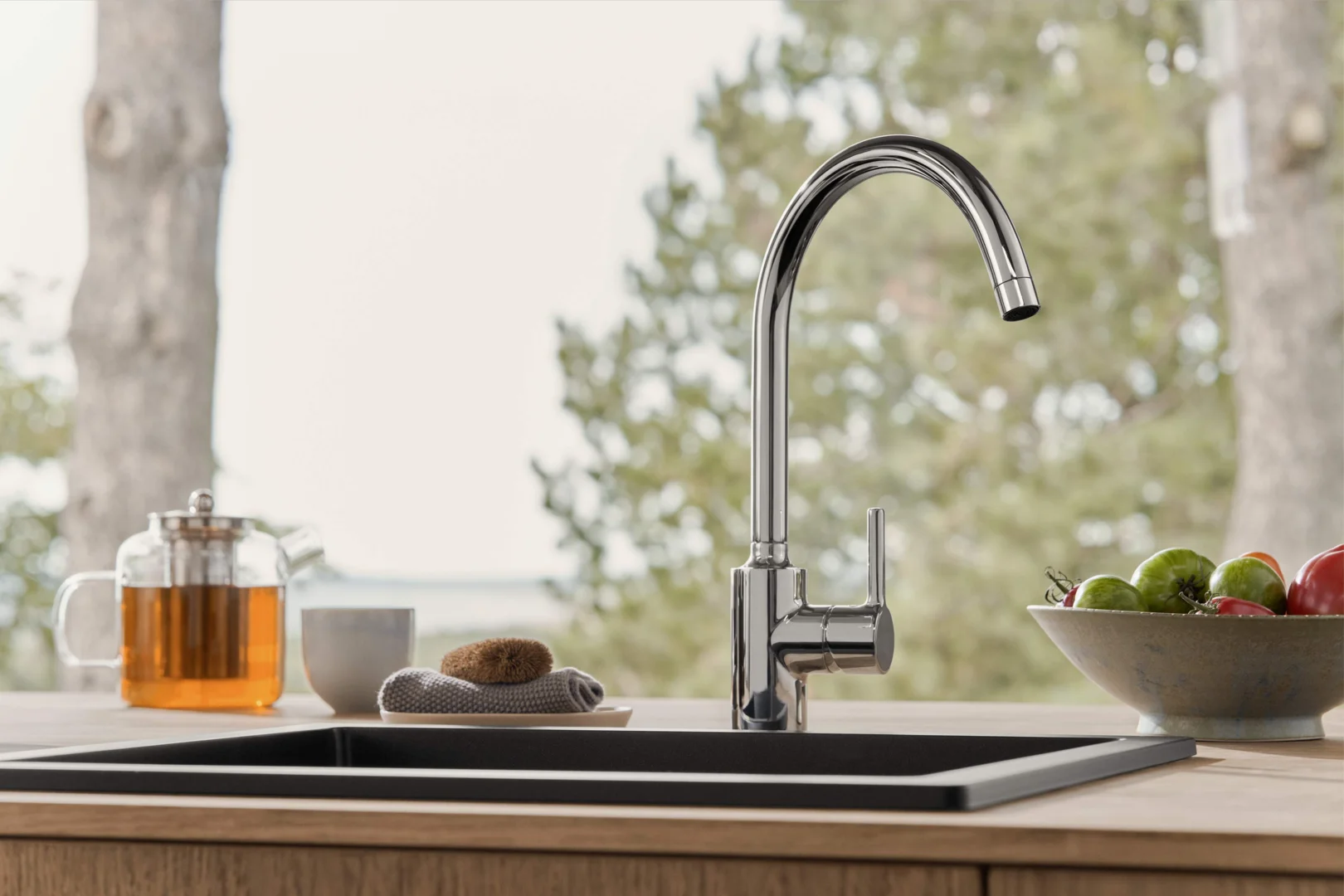

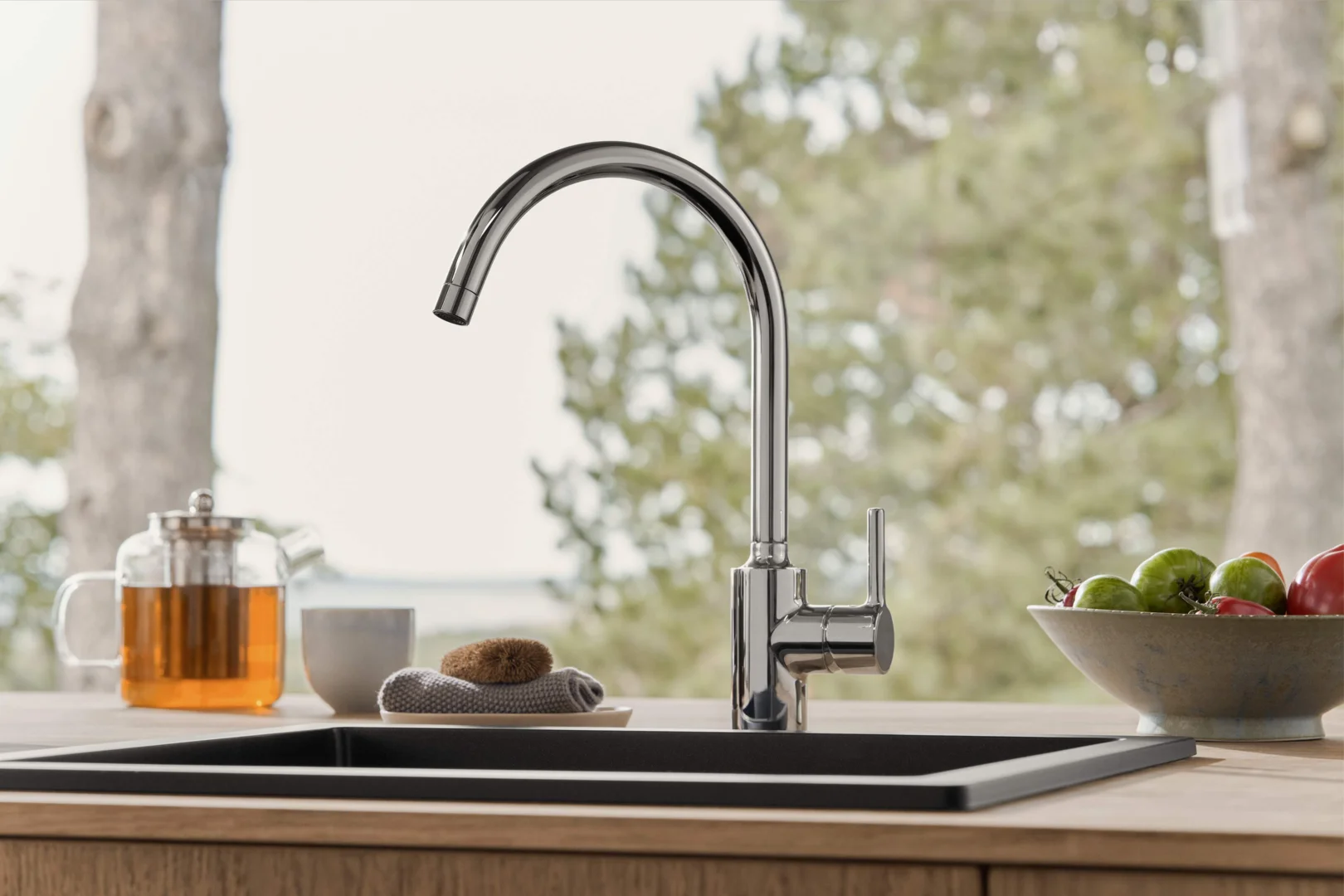

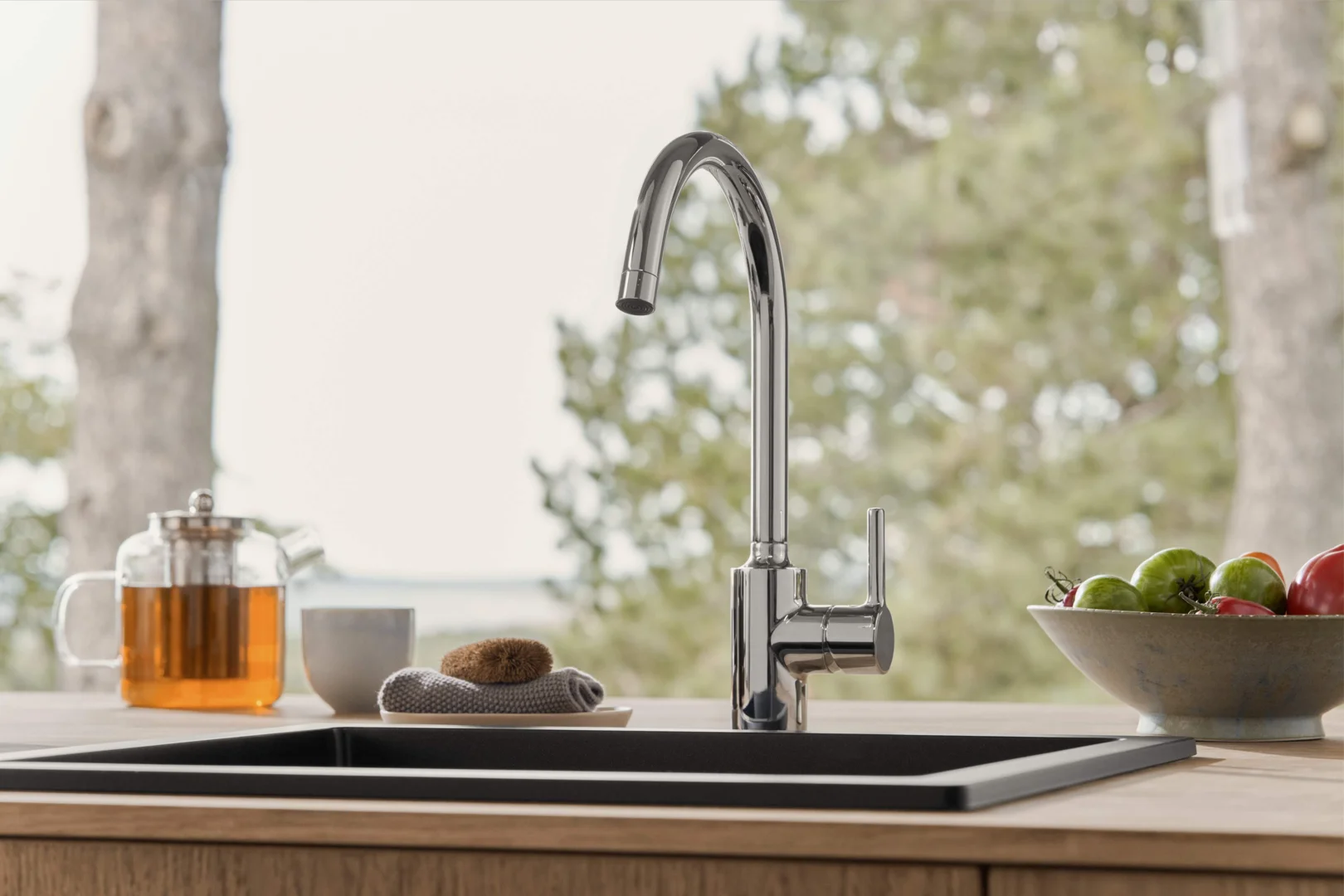

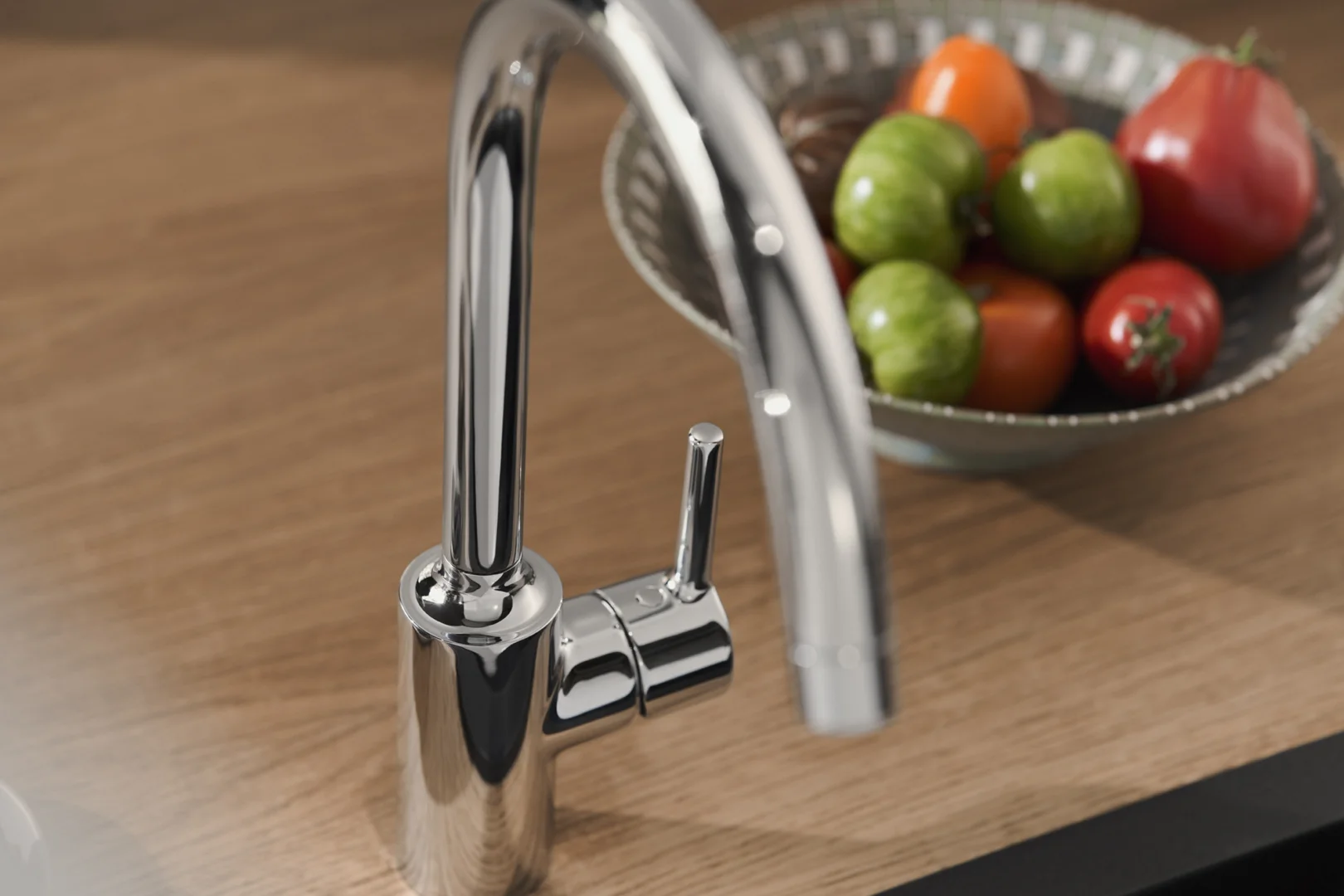

The HANSAVANTIS kitchen faucet showcases a polished chrome finish and a versatile swivel spout. The single-lever, side-operated design provides precise temperature control, clearly marked with intuitive hot/cold symbols. Constructed from robust high quality DZR brass, this deck-mounted faucet ensures enduring durability and reliability. Its pin-shaped handle offers ergonomic comfort, enhancing the overall user experience. Combining aesthetic appeal with functional excellence, the HANSAVANTIS faucet stands as a premier choice for contemporary kitchens, delivering easy installation and consistent performance. Discover expert craftsmanship that caters to diverse needs with this innovative addition.
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Pin shape, Hot/Cold symbols
- Mechanical parts ø 30 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass
- Spout Swivel spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate
- Flow-rate at 3 bar 10.8 l/min
- Backflow prevention (EN1717) AA
- Connection size G3/8
- Hot water supply max. +70°C
- Material Brass
- Projection 247 mm
- Spout swivel range 120°
- Working pressure 0.5 - 10 bar
- EN standard EN 817
- Noise class I (ISO 3822)
- EPD module A1 (kg CO2 eq.) 7,67
- EPD module A1-A3 (kg CO2 eq.) 11,40
- EPD module A2 (kg CO2 eq.) 0,37
- EPD module A3 (kg CO2 eq.) 3,37
- EPD module A4 (kg CO2 eq.) 0,23
- EPD module B7 (kg CO2 eq.) 4255,20
- EPD module C2 (kg CO2 eq.) 0,02
- EPD module C3 (kg CO2 eq.) 0,02
- EPD module C4 (kg CO2 eq.) 0,34
- EPD module D (kg CO2 eq.) -6,44
SP52202267 Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Aerator, STD M22x1 CC A (Chrome) |
|
|
| 02 |
|
High spout, L=208
(Chrome)
Discontinued
|
|
|
| 03 |
|
Spout overturning stopper, 60°/0° |
|
|
| 03 |
|
Spout overturning stopper, 120°
Discontinued
|
|
|
| 04 |
|
Sealing kit for spout |
|
|
| 05 |
|
Cartridge, 3.0 |
|
Download |
| 06 |
|
Tightening nut, M34x1.5, SW30 |
|
|
| 07 |
|
Covering cap (Chrome) |
|
|
| 08 |
|
Symbol plug (Chrome) |
|
|
| 09 |
|
Lever (Chrome) |
|
|
| 10 |
|
Supporting plate |
|
|
| 11 |
|
Fixing set |
|
|
