Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option
- Color Brushed steel
- Temperature Limitation option for maximum temperature and flow-rate
Flow attributes
- Flow-rate at 3 bar 12 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 219 mm
- Spout swivel range 120° (60° / 0°)
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Sustainability
- EPD module A1 (kg CO2 eq.) 11,29
- EPD module A1-A3 (kg CO2 eq.) 16,79
- EPD module A2 (kg CO2 eq.) 0,54
- EPD module A3 (kg CO2 eq.) 4,97
- EPD module A4 (kg CO2 eq.) 0,33
- EPD module B7 (kg CO2 eq.) 4728,00
- EPD module C2 (kg CO2 eq.) 0,02
- EPD module C3 (kg CO2 eq.) 0,03
- EPD module C4 (kg CO2 eq.) 0,51
- EPD module D (kg CO2 eq.) -9,49

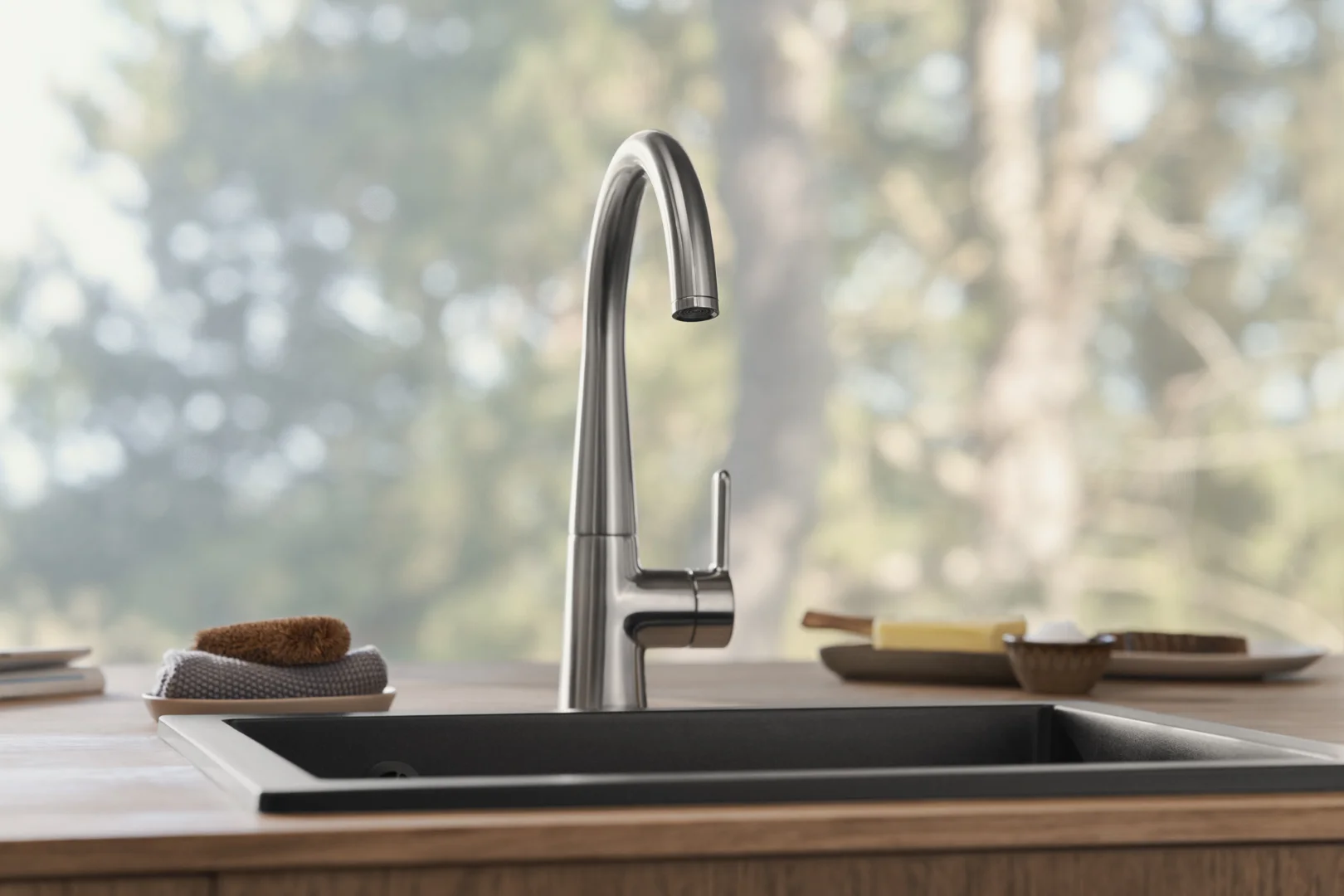

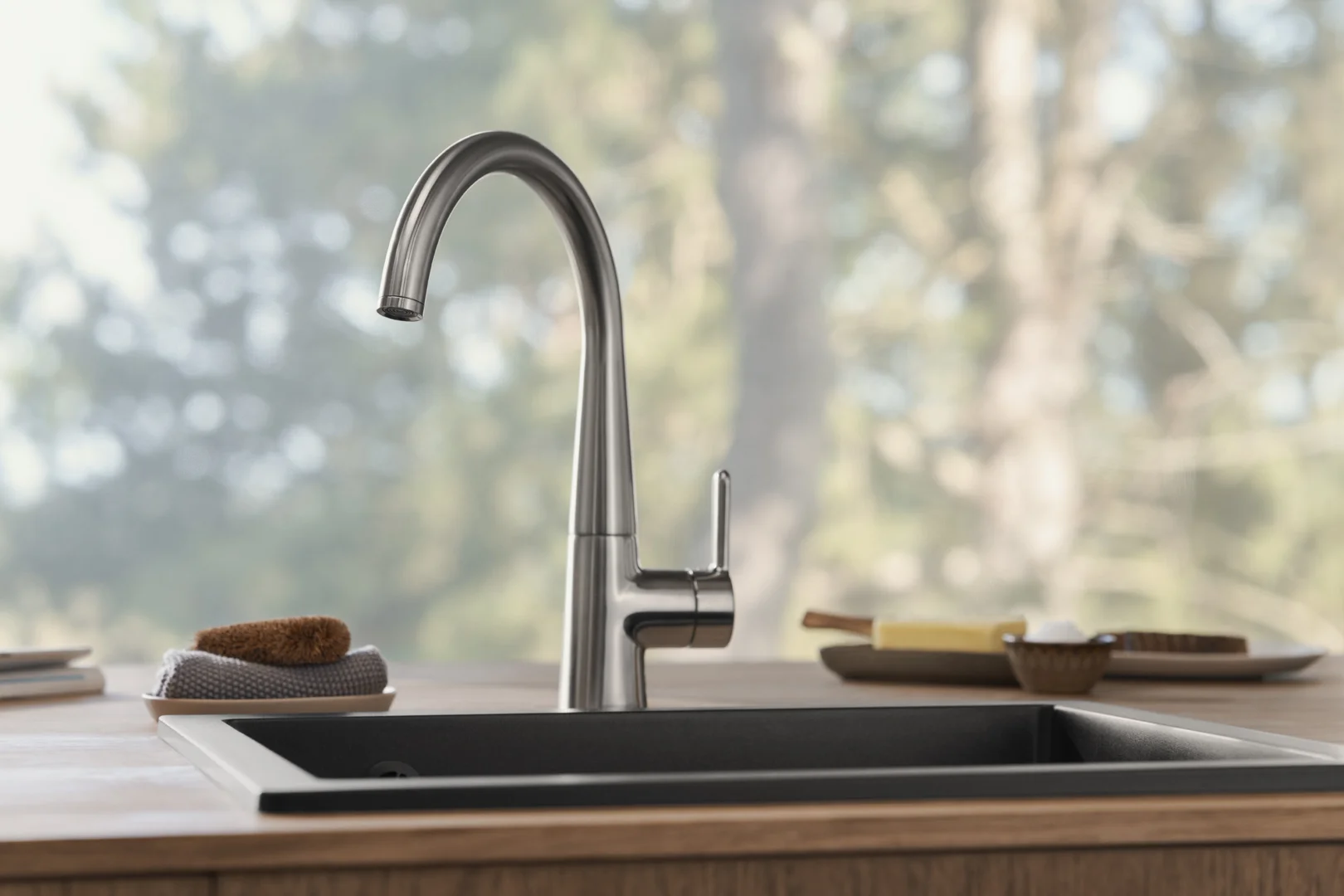

SP51012283CLR Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Spout overturning stopper, 60°/0° |
|
|
| 01 |
|
Spout overturning stopper, 120°
Discontinued
|
|
|
| 02 |
|
Sealing kit for spout |
|
|
| 03 |
|
Cartridge |
|
|
| 04 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 05 |
|
Bottom seal |
|
|
| 06 |
|
Supporting plate |
|
|
| 07 |
|
Fixing screw, M8x1, L=130 |
|
|
| 08 |
|
Fixing set |
|
