Features
- Additional features protected against back-flow in domestic use (according to DIN EN 1717)
- Aerator Hidden aerator
- Diverter Pull operated diverter, Automatic reset
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control, Non-return valve(s)
- Number of spray functions 3 spray functions
- Shower parts Hand shower, Shower holder, Shower hose (1250 mm)
- Shower spray Pulsating - Strong water stream for massage or body treatment, Intense - invigorating water stream, Sensitive – Gentle water stream
- Spout Fixed spout
- Color Chrome
- Temperature Adjustable hot water stop (included, retrofittable), Limitation option for maximum temperature and flow-rate
Flow attributes
- Flow-rate at 3 bar 20.4 / 13.8 l/min
Technical properties
- Backflow prevention (EN1717) EB
- DN-size (nominal dimension) DN15
- Hot water supply max. +65°C
- Material Brass

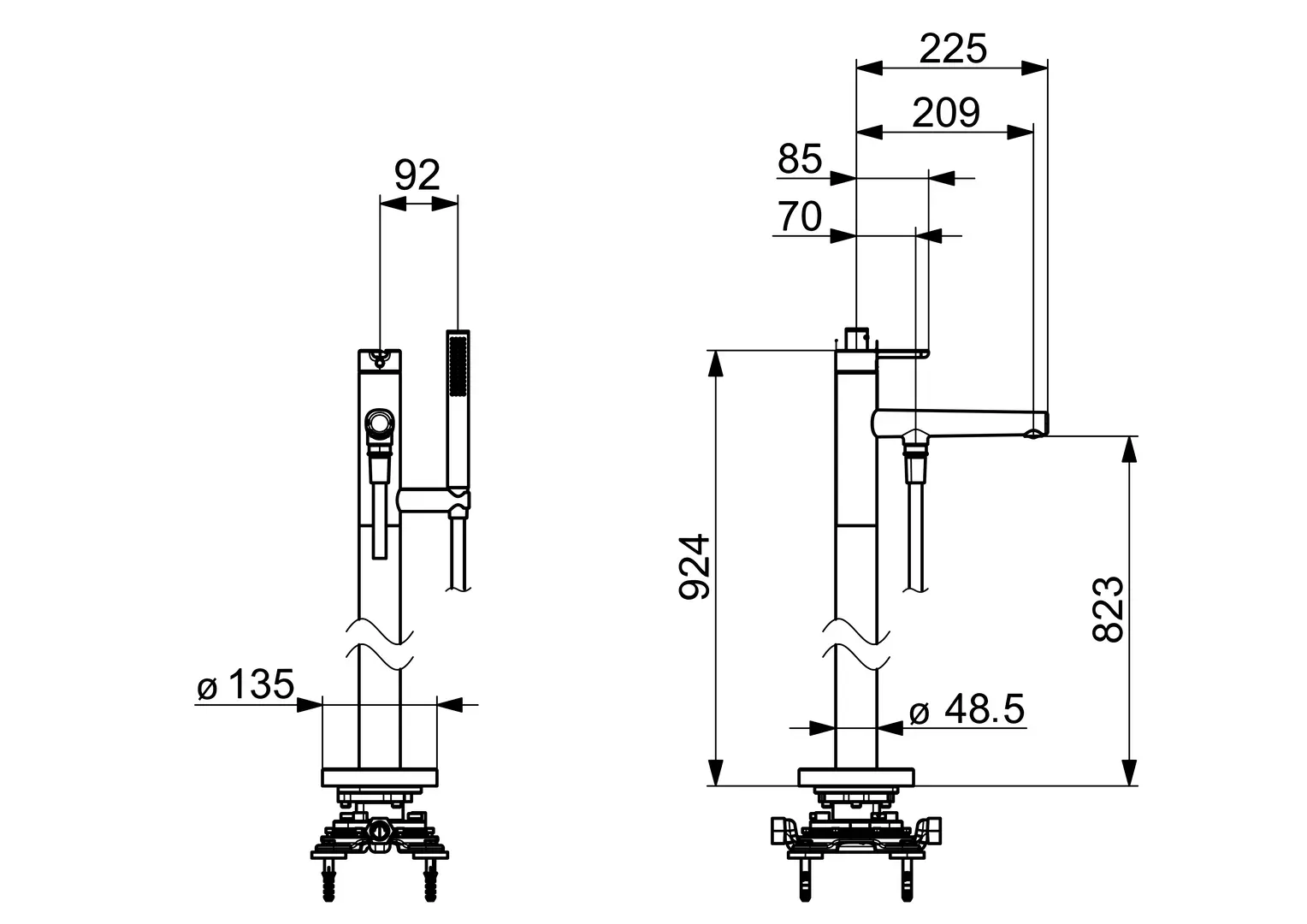

- Projection 209 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817, EN 1112, EN 1113
- Noise class I (ISO 3822)

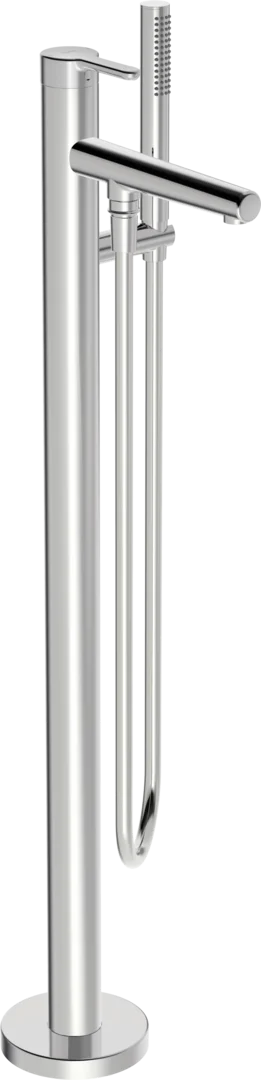

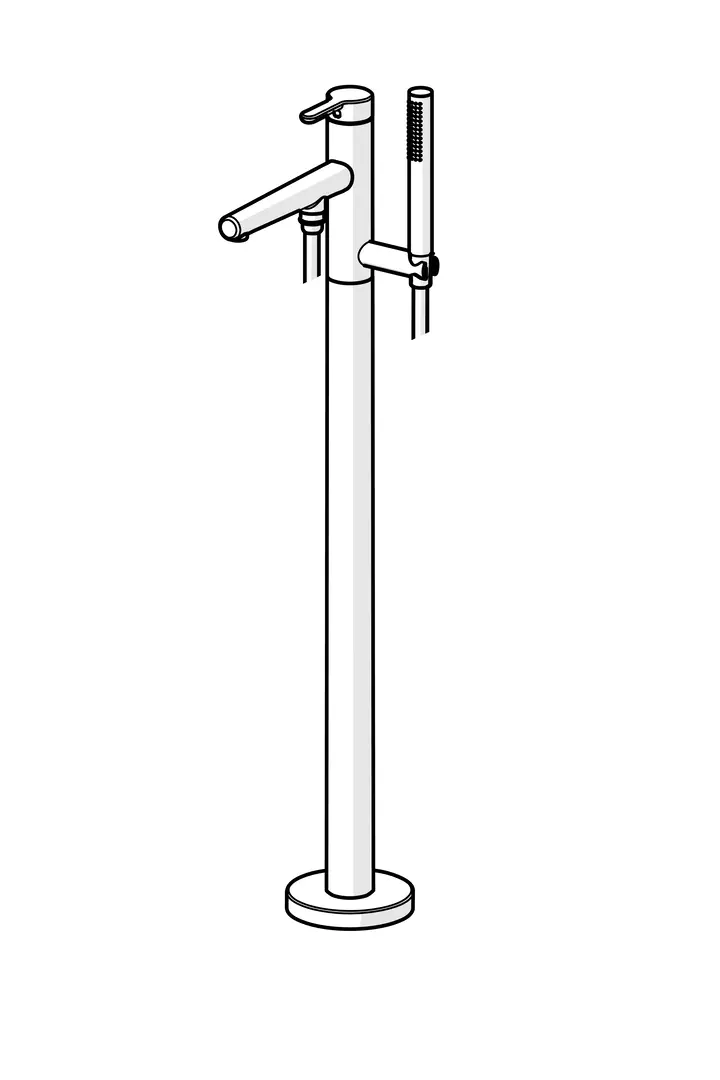

SP53272083 Bath faucet, floor mounting
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Symbol plug |
|
|
| 03 |
|
Covering cap (Chrome) |
|
|
| 04 |
|
Tightening nut, M42x1,5, SW 38 |
|
|
| 05 |
|
Cartridge, 4.0 Classic |
|
Download |
| 06 |
|
Spout (Chrome) |
|
|
| 07 |
|
Fitting ring for aerator (Chrome) |
|
|
| 08 |
|
Aerator, M18.5x1 |
|
|
| 09 |
|
Diverter |
|
|
| 10 |
|
Non-return valve |
|
|
| 11 |
|
Hand shower holder (Chrome) |
|
|
| 12 |
|
Cover plate (Chrome) |
|
|
| 13 |
|
Fixing set |
|
|
| 14 |
|
O-ring, d 35x2 |
|
|
