Features
- Diverter Turn operated diverter
- Concealed parts Round rosette, Fastening of the function unit with screws, BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar 20.4 / 20.4 l/min
Technical properties
- Hot water supply max. +80°C
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
+85269183.webp)

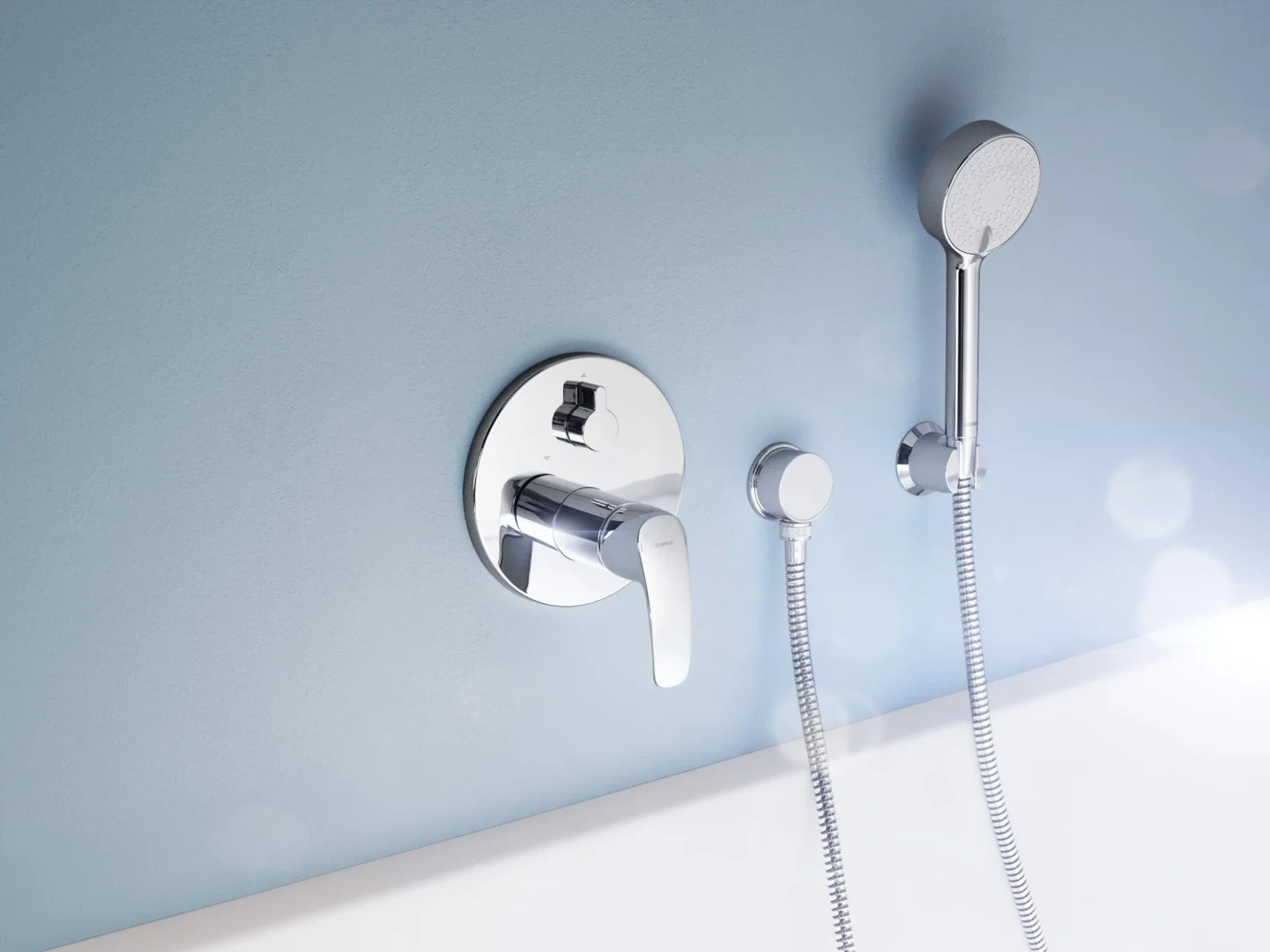

SP85269183 Cover part for bath and shower faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Functional unit |
|
|
| 02 |
|
Cartridge, 4.0 Classic |
|
Download |
| 03 |
|
Tightening nut, M42x1,5, SW 38 |
|
|
| 04 |
|
O-ring, 23.47x2.62 |
|
|
| 05 |
|
Diverter and cartridge |
|
Download |
| 06 |
|
Cover flange, d 170 mm (Chrome) |
|
|
| 07 |
|
Fixing part |
|
|
| 08 |
|
Screw, M4.5x80 |
|
|
| 09 |
|
Cover sleeve (Chrome) |
|
|
| 10 |
|
Screw, M4x8 |
|
|
| 11 |
|
Symbol plug |
|
|
| 12 |
|
Lever (Chrome) |
|
|
| 13 |
|
Diverter knob (Chrome) |
|
|
| N.I. |
|
Fixing screw, M6x13 |
|
|
| N.I. |
|
Diverter, 120° |
|
|
| N.I. |
|
Raising kit, 15 mm, d 170 mm |
|
Download |
| N.I. |
|
Adapter, H/C reversed |
|
Download |
| N.I. |
|
Raising kit, 15 mm |
|
|
