056821190074 | High washbasin faucet, 6 V, Bluetooth
HANSAMEDIPRO
Discontinued
Features
- Electronic parts Autofocus infrared sensor, Solenoid valve, Low battery indicator
- Mechanical parts Litter filter(s), Non-return valve(s)
- Spout Fixed spout, Casted construction
- Color Chrome
Technical properties
- Backflow prevention (EN1717) AA
- Connection size 9/16-24 UNEF EB
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass

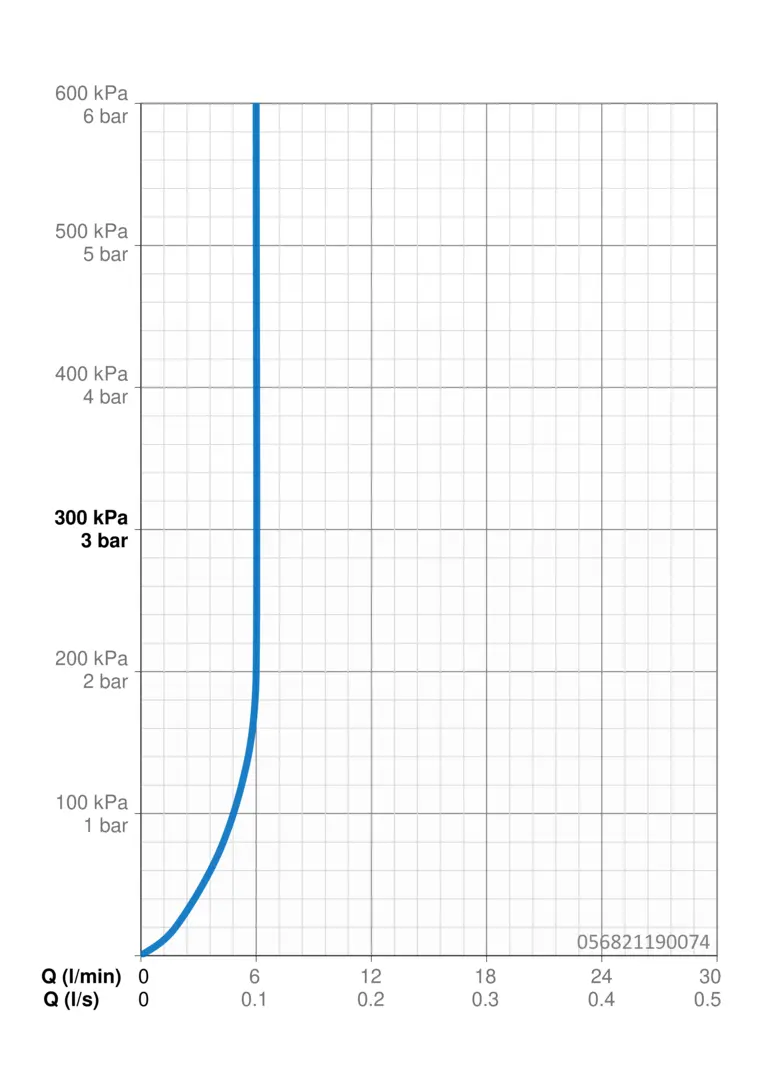

- Working pressure 1 - 10 bar
Electronics
- Battery Lithium 2CR5 6 V
- Bluetooth version 4.x (D034445)
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Protection class IP 55
SP056821190074 High washbasin faucet
Ask pricing from your local retailers.
Spare parts | Code | Spare part guide | ||
01 |
![]() |
Aerator, M24x1 STD HC, 6 l/min Laminar (Chrome) |
|
|
02 |
![]() |
Sensor, 6/9/12 V, Bluetooth |
|
Download |
03 |
![]() |
Solenoid valve, 6 V |
|
Download |
04 |
![]() |
Membrane support ring
Discontinued
|
|
Download |
04 |
![]() |
Membrane for solenoid valve |
|
Download |
05 |
![]() |
Temperature regulator |
|
Download |
06 |
![]() |
Fixing plates with nuts |
|
|
07 |
![]() |
Battery casing |
|
|
08 |
![]() |
Battery, 2CR5 6 V |
|
|
09 |
![]() |
Non-return valve
Discontinued
|
|
|
10 |
![]() |
Litter filter
Discontinued
|
|
