57162279 | Washbasin faucet, 6 V, Bluetooth
Find local retailer
HANSASTELA ECO+
Touchless washbasin faucet with a temperature adjustment handle (as factory default). The faucet can be easily modified for preset temperature or premixed water.
Features
- Aerator Hidden aerator, PCA® - constant flow rate regardless of pressure variations, Adjustable flow angle
- Connection Flexible inlet pipes
- Electronic parts Autofocus infrared sensor, Solenoid valve, Low battery indicator
- Lever/Handle Temperature control handle
- Mechanical parts Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
- Advanced features Inner body made of DZR brass, Software settings adjustable via App, Convertible for cold or premixed-water supply
- Spout Fixed spout, Casted construction
- Color Chrome
- Temperature Adjustable hot water stop (included, retrofittable)
Software settings
- Afterflow period 3 s (1-20 s)
- Automatic flush off (off/1-120 h)
- Automatic flush period 30 s (1-1800 s)
- Max. flow period 2 min (1 - 1800 s)

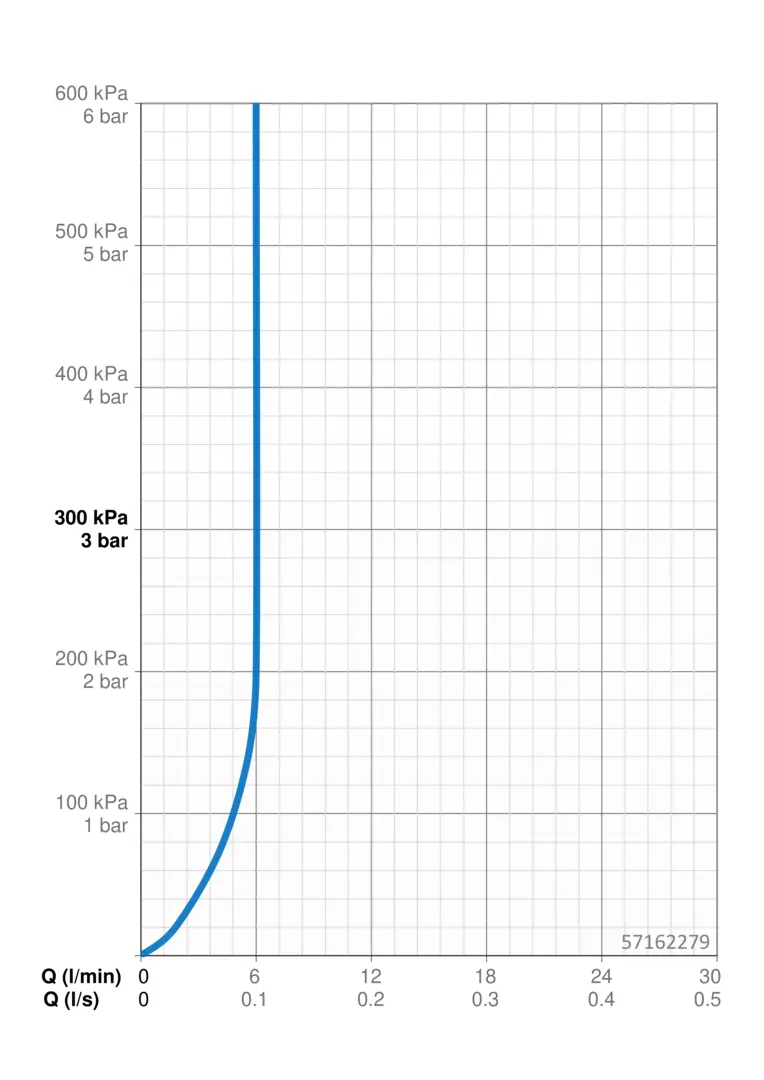

Flow attributes
- Flow-rate at 3 bar (with flow controller) 4.8 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 105 mm
- Working pressure 1 - 10 bar
Electronics
- Battery Lithium 2CR5 6 V
- Bluetooth version 4.x (D034445)
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Noise class I (ISO 3822)
- Protection class IP 55
Approvals and Declarations
- UN38.3 UN38-3 Maxell 2CR5
+SP57162279(2021)+SP4814FZ-GB.webp)
SP57162279 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Aerator, M24x1 HC SSR-STD |
|
|
| 02 |
|
Sensor, 6/9/12 V, Bluetooth |
|
Download |
| 03 |
|
Solenoid valve, 6 V |
|
Download |
| 04 |
|
Membrane support ring
Discontinued
|
|
Download |
| 04 |
|
Membrane for solenoid valve |
|
Download |
| 05 |
|
Temperature regulator |
|
Download |
| 06 |
|
Temperature control handle (Chrome) |
|
Download |
| 07 |
|
Fixing plates with nuts |
|
|
| 08 |
|
Battery casing, 2CR5 6 V |
|
|
| 09 |
|
Battery, 2CR5 6 V |
|
|
| 10 |
|
Filter sealing |
|
|
| N.I. |
|
Limiter |
|
Download |
