Features
- Connection Eccentric coupling(s), External thread, Cover plate(s), Silencer(s)
- Diverter Turn operated diverter, Integrated into flow control handle
- Lever/Handle Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
- Mechanical parts Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
- Number of spray functions 3 spray functions
- Shower parts Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean), Twist guard for shower hose
- Shower spray Normal - Even and soft water stream
- Advanced features Flexible length / can be shortened
- Color Chrome
- Temperature Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat
Flow attributes
- Flow-rate at 3 bar (with flow controller) 7.5 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G3/4
- DN-size (nominal dimension) DN15
- Hot water supply max. +65°C
- Installation width 150 ± 3 mm
- Material Brass
- Working pressure 1 - 10 bar
Regulations
- EN standard EN 1111, EN 1112, EN 1113
- Noise class I (ISO 3822)
Approvals and Declarations
- ACS 20 ACC LY 145
Sustainability
- EPD module A1 (kg CO2 eq.) 16,75
- EPD module A1-A3 (kg CO2 eq.) 19,40
- EPD module A2 (kg CO2 eq.) 0,86
- EPD module A3 (kg CO2 eq.) 1,77
- EPD module A4 (kg CO2 eq.) 0,51
- EPD module B7 (kg CO2 eq.) 1447,50
- EPD module C2 (kg CO2 eq.) 0,04
- EPD module C3 (kg CO2 eq.) 0,04
- EPD module C4 (kg CO2 eq.) 1,06
- EPD module D (kg CO2 eq.) -12,68
+44350130+7402-33.webp)
SP44350130 Shower system
Ask pricing from your local retailers.

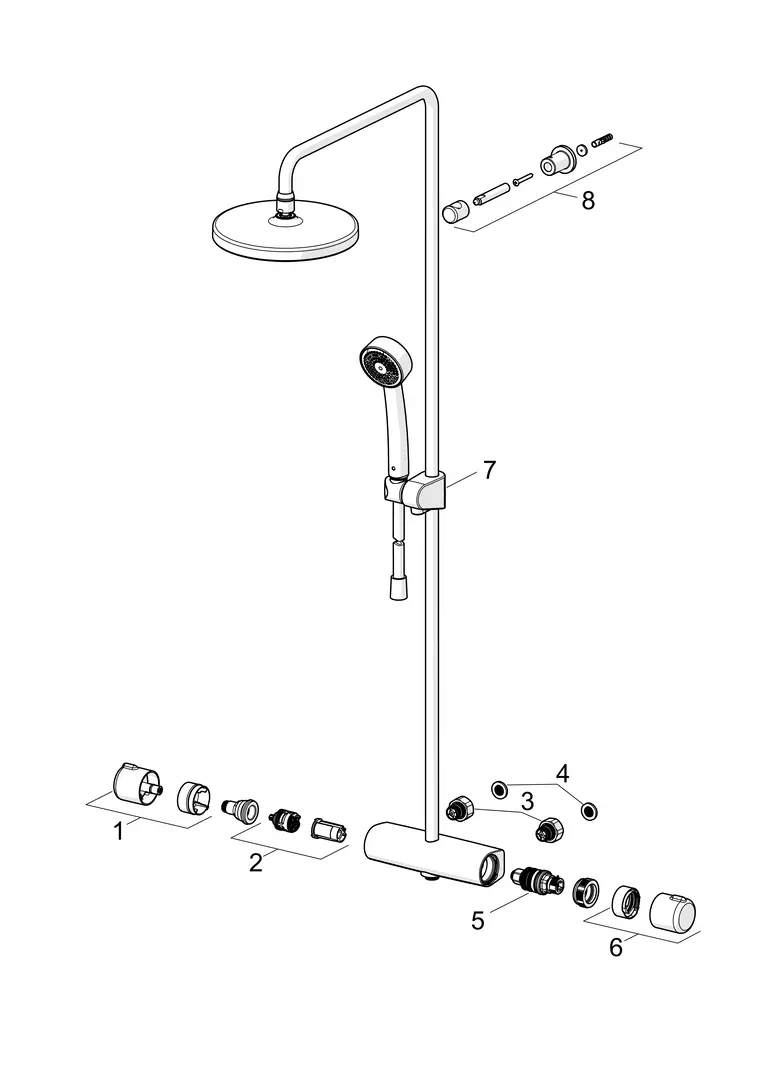

| Spare parts | Code | Spare part guide | ||
| 01 |
|
Flow control handle (Chrome) |
|
|
| 02 |
|
Diverter and cartridge |
|
Download |
| 03 |
|
Combiner |
|
|
| 04 |
|
Filter sealing, G3/4 |
|
|
| 05 |
|
Thermostatic cartridge, 3.4 |
|
Download |
| 06 |
|
Temperature control handle (Chrome) |
|
|
| 07 |
|
Slide for shower rail (Chrome) |
|
Download |
| 08 |
|
Shower pipe holder (Chrome) |
|
Download |
