Variants

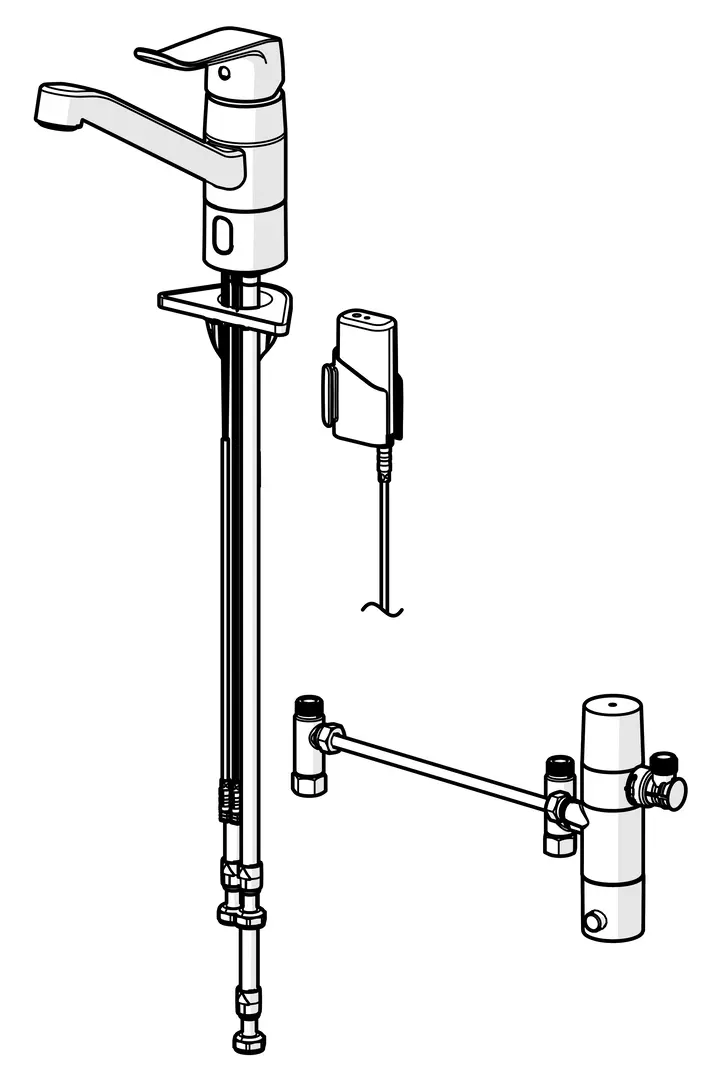

46132209 | Kitchen faucet, 3 V, Bluetooth
Find local retailer
HANSACARE Hybrid
Care Hybrid series is giving you a whole new modern design to fit into any kitchen. Lever can easily be moved by using the backside of the hand and with our intelligent touchless functions build into same faucet it also supports hygiene operation without any touch needed.
Features
- Aerator Laminar stream
- Connection Flexible inlet pipes
- Electronic parts Advanced PSD sensor, Solenoid valve, Low battery indicator
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass, 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option, Profile construction
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate
Software settings
- Automatic flush off (off/1-120 h)
- Automatic flush period 30 s (1-1800 s)
- Max. flow period 10 s(1 - 1800 s)
Flow attributes
- Flow-rate at 3 bar 11.4 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN6
- Hot water supply max. +70°C
- Material Brass

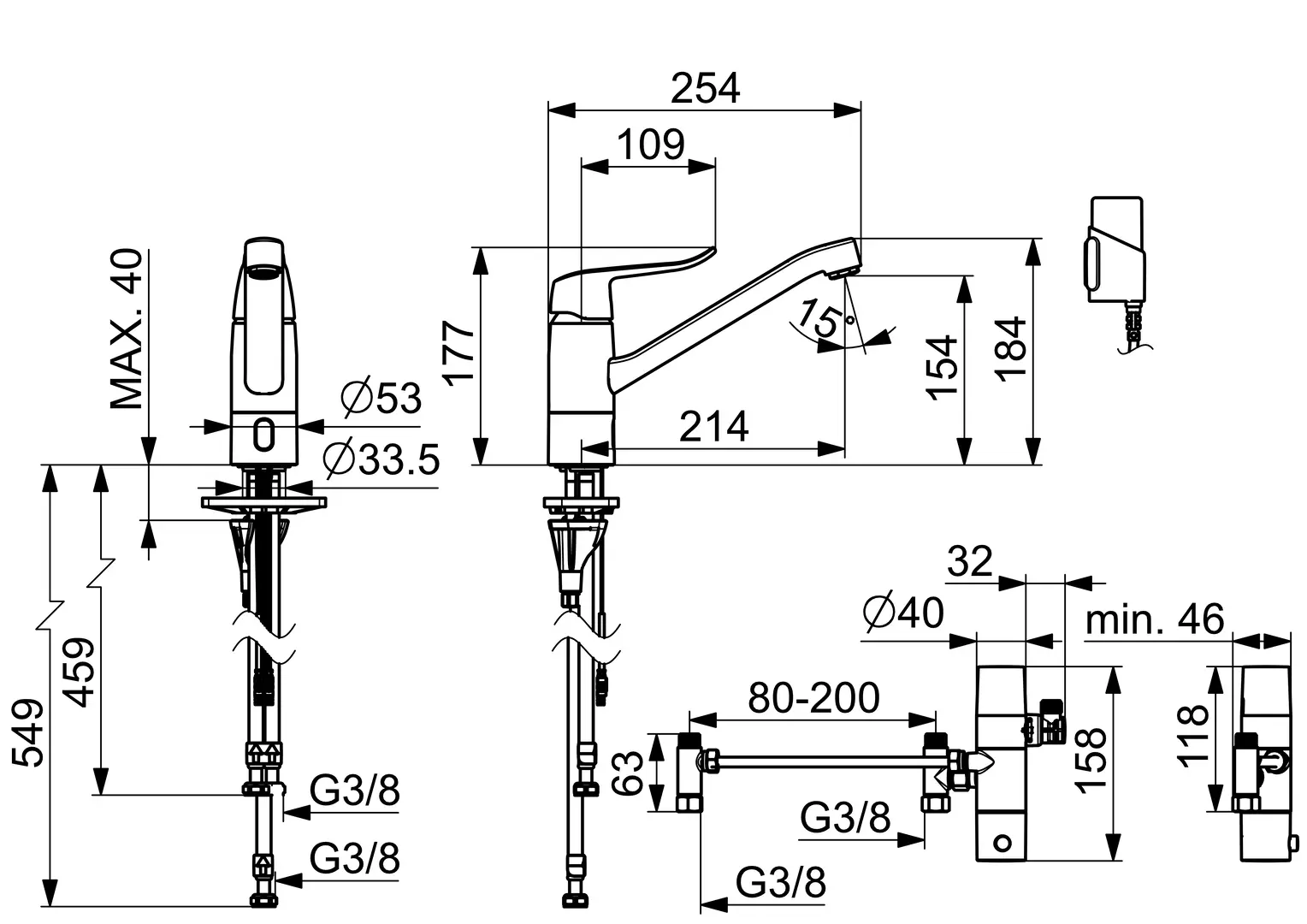

- Projection 214 mm
- Working pressure 0.5 - 10 bar
Electronics
- Battery AA 1.5 V Lithium x 2
- Bluetooth version 5.x (D060576)
- Electrical Connection 9 V
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Noise class I (ISO 3822)
- Protection class IP 55
SP46132209 Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever, L=136 (Chrome) |
|
|
| 02 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 03 |
|
Cartridge, 4.0 Classic |
|
Download |
| 04 |
|
Aerator, M24x1 STD PL HC A Laminar (2013-) (Chrome) |
|
|
| 05 |
|
X-sealing set |
|
Download |
| 06 |
|
Bearing ring |
|
|
| 07 |
|
Spout overturning stopper, 120° |
|
|
| 07 |
|
Spout overturning stopper, 40°-80° |
|
Download |
| 08 |
|
Sensor, 3/9 V, Bluetooth |
|
Download |
| 09 |
|
Bottom seal |
|
|
| 10 |
|
Supporting plate |
|
|
| 11 |
|
Fixing set |
|
Download |
| 12 |
|
Pilot valve, 3 V |
|
Download |
| 13 |
|
Thermostatic cartridge, 3.4 |
|
Download |
| 14 |
|
Temperature control handle (Chrome) |
|
|
| 15 |
|
Battery casing |
|
|
| 16 |
|
Power supply, 230/9 V, 550 mA |
|
|
| N.I. |
|
Battery, 1.5 V AA Lithium |
|
|
