Variants
46132009 | Kitchen faucet, 230/9 V, Bluetooth
Find local retailer
HANSACARE Hybrid
Care Hybrid series is giving you a whole new modern design to fit into any kitchen. Lever can easily be moved by using the backside of the hand and with our intelligent touchless functions build into same faucet it also supports hygiene operation without any touch needed.
standard aerator installed - Laminar aerator included in box
Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Electronic parts Advanced PSD sensor, Solenoid valve, Power supply
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass, 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option, Profile construction
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate
Software settings
- Automatic flush off (off/1-120 h)
- Automatic flush period 30 s (1-1800 s)
- Max. flow period 10 s(1 - 1800 s)
Flow attributes

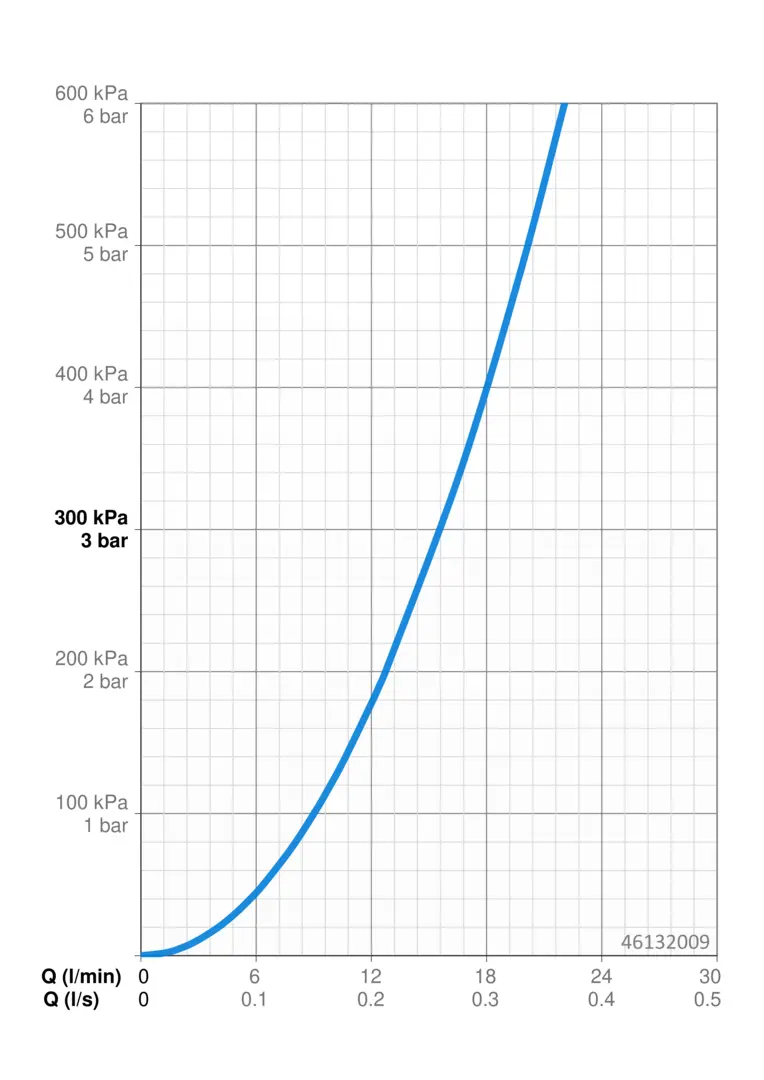

- Flow-rate at 3 bar 15.6 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN6
- Hot water supply max. +70°C
- Material Brass
- Projection 214 mm
- Working pressure 0.5 - 10 bar
Electronics
- Bluetooth version 5.x (D060576)
- Electrical Connection 230 / 9 V
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Noise class I (ISO 3822)
- Protection class IP 55 / transformer IP 20
Sustainability
- EPD module A1 (kg CO2 eq.) 14,91
- EPD module A1-A3 (kg CO2 eq.) 24,40
- EPD module A2 (kg CO2 eq.) 0,69
- EPD module A3 (kg CO2 eq.) 8,77
- EPD module A4 (kg CO2 eq.) 0,66
- EPD module B7 (kg CO2 eq.) 3073,20
- EPD module C2 (kg CO2 eq.) 0,03
- EPD module C3 (kg CO2 eq.) 0,03
- EPD module C4 (kg CO2 eq.) 0,63
- EPD module D (kg CO2 eq.) -11,83
SP46132209 Kitchen faucet
Ask pricing from your local retailers.

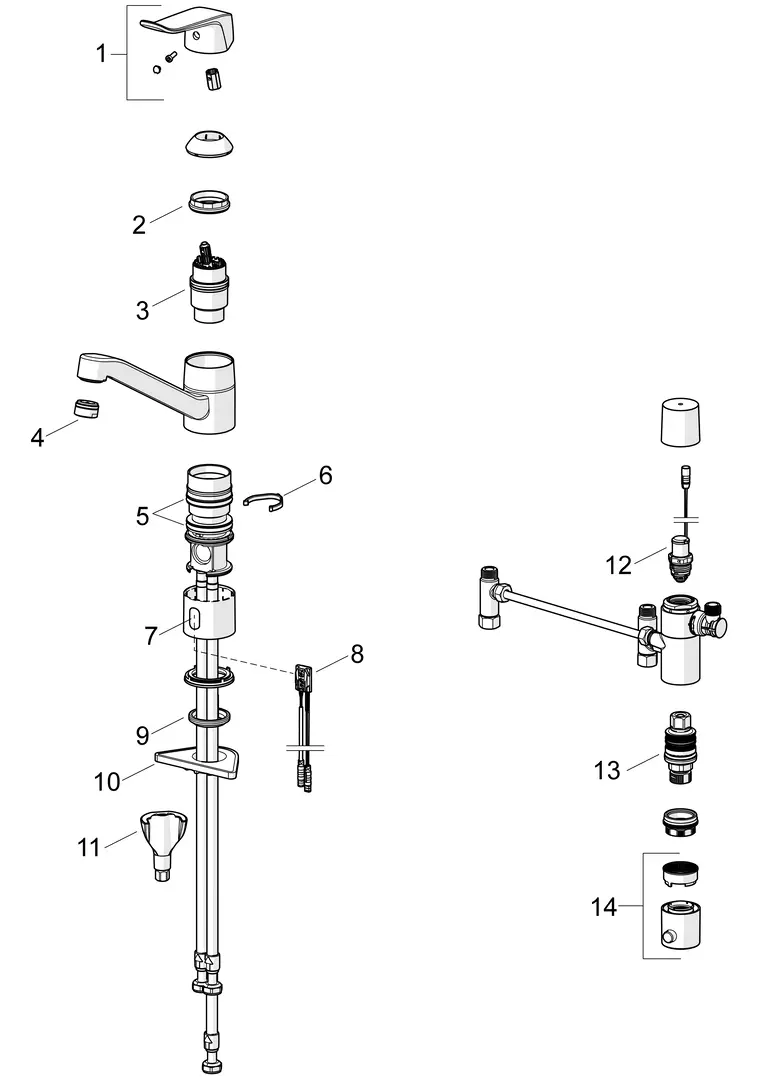

Spare parts | Code | Spare part guide | ||
01 |
|
Lever, L=136 (Chrome) |
|
|
02 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
03 |
|
Cartridge, 4.0 Classic |
|
Download |
04 |
|
Aerator, M24x1 STD PL HC A Laminar (2013-) (Chrome) |
|
|
05 |
|
X-sealing set |
|
Download |
06 |
|
Spout overturning stopper, 40°-80° |
|
Download |
06 |
|
Spout overturning stopper, 120° |
|
|
07 |
|
Window |
|
Download |
08 |
|
Sensor, 3/9 V, Bluetooth |
|
Download |
09 |
|
Bottom seal |
|
|
10 |
|
Supporting plate |
|
|
11 |
|
Fixing set |
|
Download |
12 |
|
Pilot valve, 3 V |
|
Download |
13 |
|
Thermostatic cartridge, 3.4 |
|
Download |
14 |
|
Temperature control handle (Chrome) |
|
|
N.I. |
|
Battery, 1.5 V AA Lithium |
|
