Features
- Connection Flexible inlet pipes
- Electronic parts External control unit
- Extensions Push pop-up waste without draw-rod
- Hand shower Remote-operated Smart Bidetta
- Lever/Handle Temperature control handle

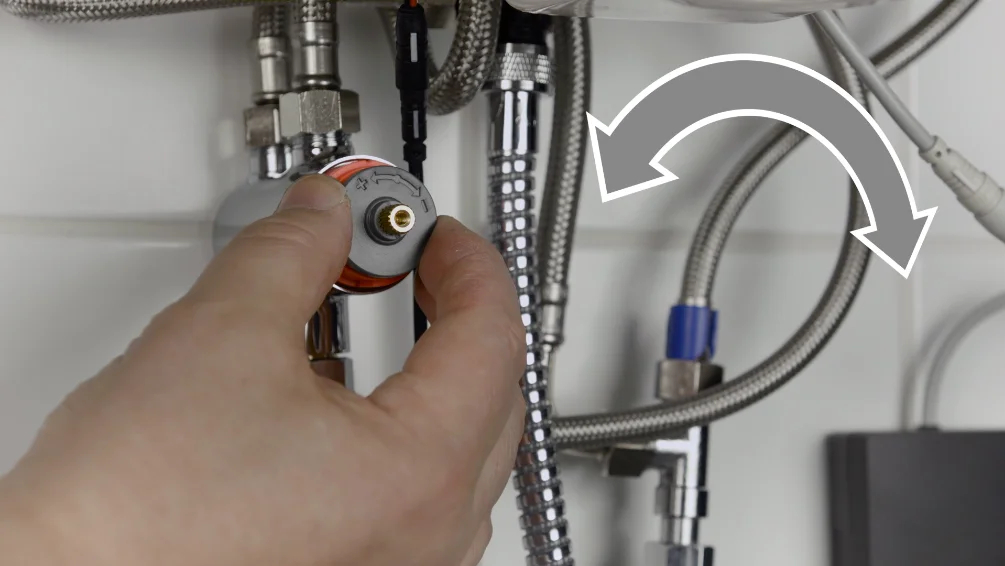

- Mechanical parts Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s), ø 40 mm ceramic cartridge for flow and temperature control
- Shower parts Hand shower, Shower holder, Shower hose (1500 mm)
- Advanced features Software settings adjustable via magnetic key, Waterways without nickel coating
- Spout Swivel spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Software settings
- Automatic flush off (off/12/24/48/72 h)
- Automatic flush period 30 s (10/30/60/120/180/240/300/600 s)
- Max. flow period 6 s (4/6/8/10/20/60 s)
Flow attributes
- Flow-rate at 3 bar 6 / 6 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 168 mm
- Working pressure 1 - 10 bar
Electronics
- Battery AA 1.5 V Lithium x 2, CR 2450 3 V
Regulations
- EU Directives EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Protection class IP 55
Approvals and Declarations
- UN38.3 UN38-3 Energizer L91
+55112201(2017).webp)
SP55112201 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 1 |
|
Lever (Chrome) |
|
|
| 2 |
|
Symbol plug |
|
|
| 3 |
|
Covering cap (Chrome) |
|
|
| 4 |
|
Tightening nut, M42x1,5, SW 38 |
|
|
| 5 |
|
Cartridge, 4.0 Classic |
|
Download |
| 6 |
|
O-ring, 53.64x2.62 |
|
|
| 7 |
|
Supporting plate |
|
|
| 8 |
|
Fixing screw, M6x65 |
|
|
| 9 |
|
Fixing plate with a nut |
|
|
| 10 |
|
Rapid pop-up waste (Chrome) |
|
|
| 11 |
|
Spout (Chrome) |
|
|
| 12 |
|
Aerator and key, M18.5x1 (Chrome) |
|
|
| 13 |
|
Sensor, 3 V |
|
Download |
| 14 |
|
Battery, CR2450 3 V Lithium |
|
Download |
| 15 |
|
Control unit, 3 V /RF |
|
Download |
| 16 |
|
Battery, 1.5 V AA Lithium |
|
|
| 17 |
|
Solenoid valve complete, 3 V |
|
Download |
| 18 |
|
Membrane
Discontinued
|
|
Download |
| 18 |
|
Membrane for solenoid valve |
|
Download |
| 19 |
|
Thermostatic cartridge, 3.4 |
|
Download |
| 20 |
|
Temperature control handle |
|
|
| 21 |
|
Non-return valve, DN15 |
|
|
