HANSASIGNATUR

Discontinued

EAN code
4015474278011

Availability date
11/2014 → 06/2019

Discontinued markets
INT, DEU, AUT, BEL, NLD, ITA, CZE, SVK

HANSASIGNATUR

HANSASIGNATUR is the champion of a new generation: Never before has a range of fittings been so completely focused on the expectations of progressive users. The dual structure of the basin fitting with a separate lever and spout is ergonomically inspired and expressed in a completely new "orgametric" design language, which combines organic and geometric forms. Also featuring a dual, intuitive operating concept and intelligent applications, HANSASIGNATUR changes our definition of the term "fitting" and, more importantly, the way we use water: with maximum convenience, control, flexibility, and sustainability.

Discover

Features

Connection Flexible inlet pipes
Extensions Push pop-up waste without draw-rod

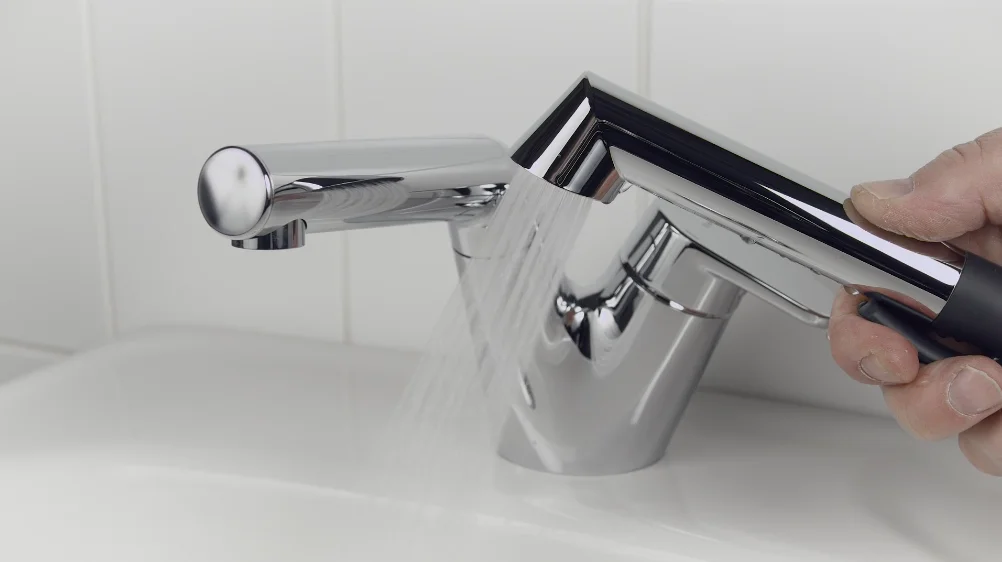

Hand shower Bidetta hand shower
Lever/Handle Hot/Cold symbols, Single operating lever/handle
Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
Mounting holes 1 hole
Number of spray functions 1 spray function
Shower parts Hand shower, Shower holder, Shower hose (1500 mm)
Advanced features Waterways without nickel coating
Spout Swivel spout
Color Chrome
Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

Flow attributes

Flow-rate at 3 bar 6 / 9 l/min

Technical properties

Backflow prevention (EN1717) HC
Connection size G3/8
DN-size (nominal dimension) DN15
Hot water supply max. +70°C
Material Brass
Projection 168 mm
Working pressure 0.5 - 10 bar

Regulations

EN standard EN 817

SP55022201 Washbasin faucet

Ask pricing from your local retailers.

	Spare parts		Code	Spare part guide
1		Lever (Chrome)	59914340
2		Symbol plug	59914341
3		Covering cap (Chrome) Discontinued	59914342
4		Tightening nut, M42x1.5, SW 38	59914128
5		Cartridge, 4.0 Classic	59914129	Download
6		O-ring, 53.64x2.62 Discontinued	59914369
7		Supporting plate	59910008
8		Fixing screw, M6x65 Discontinued	59914259
9		Fixing plate with a nut	59914344
10		Rapid pop-up waste (Chrome)	59913988
11		Spout (Chrome) Discontinued	59914343
12		Aerator and key, M18.5x1 (Chrome)	59914350
N.I.		Socket wrench, 9 mm	59914181
N.I.		Flexible pipe, L=430, G3/8-M8x1	59913964
N.I.		Bidetta hand shower (Chrome)	59914162
N.I.		Key, 38 mm	59914176
N.I.		Shower hose, L=1600 (Chrome)	04120500
N.I.		Hand shower holder (Chrome)	04430100
