55350110 | Shower system
Find local retailer
HANSABASIC
Introducing the HANSABASIC shower system – a timeless choice for every modern bathroom. Featuring a sleek chrome finish and wall-mounted installation type, this shower system not only comes with a universal design but also offers outstanding price-performance ratio. The set includes a hand shower, shower rail, overhead shower and a shower hose. The temperature and flow control handle with turn-operated diverter allow for easy adjustments. Enjoy a normal or rain spray type with the even and soft water stream with one spray function. Choose the BASIC line for daily enjoyment in everyday use.
Features
- Connection Eccentric coupling(s), Cover plate(s), Silencer(s)
- Diverter Turn operated diverter, Integrated into flow control handle
- Lever/Handle Temperature control handle, Flow control handle
- Mechanical parts Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
- Number of spray functions 1 spray function
- Shower parts Hand shower, Shower rail, Overhead shower, Shower hose (1500 mm), Anti limescale technology (easy to clean)
- Shower spray Normal - Even and soft water stream, Rain - Even and strong water stream
- Advanced features Flexible length / can be shortened
- Color Chrome
- Temperature Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat
Flow attributes
- Flow-rate at 3 bar 10.8 / 14.4 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G1/2
- DN-size (nominal dimension) DN15
- Hot water supply max. +65°C
- Installation width 150 ± 15 mm
- Material Brass
- Working pressure 1 - 10 bar
Regulations
- EN standard EN 1111, EN 1112, EN 1113
SP55350110 Shower system
Ask pricing from your local retailers.

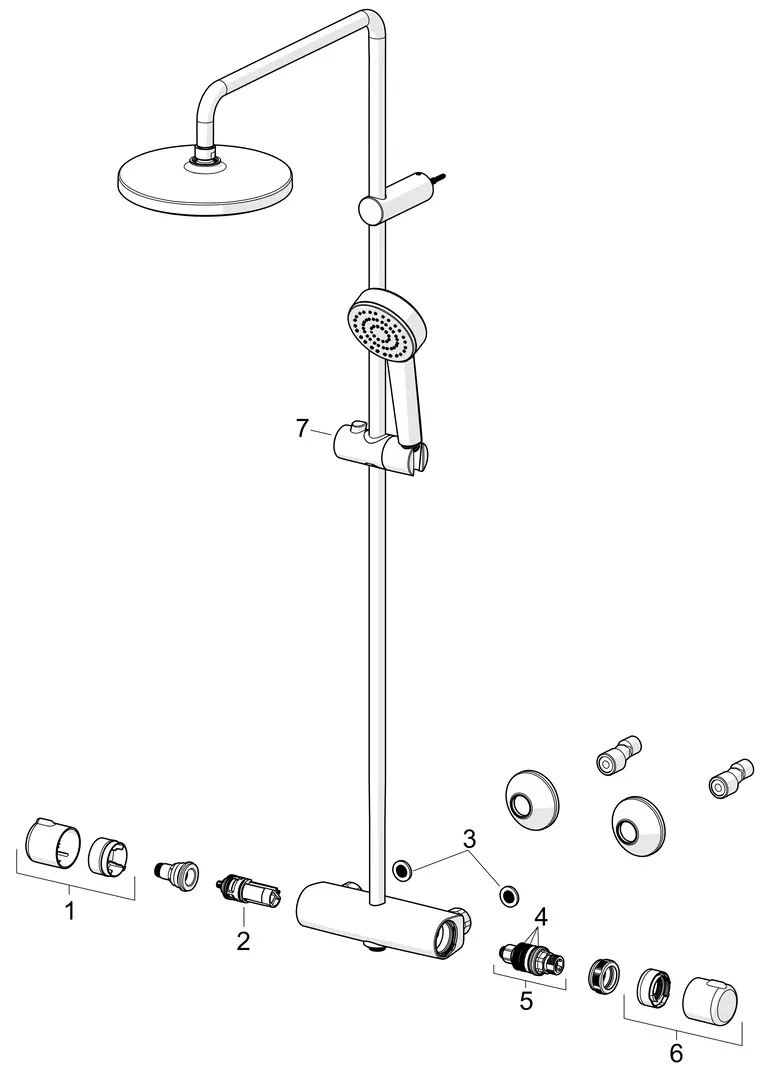

| Spare parts | Code | Spare part guide | ||
| 01 |
|
Flow control handle (Chrome) |
|
|
| 02 |
|
Diverter and cartridge |
|
Download |
| 03 |
|
Filter sealing, G3/4 |
|
|
| 04 |
|
O-ring kit |
|
|
| 05 |
|
Thermostatic cartridge, 3.4 |
|
Download |
| 06 |
|
Temperature control handle (Chrome) |
|
|
| 07 |
|
Slide for shower rail (Chrome) |
|
|
