5444220780 | Bath and shower faucet
Find local retailer
HANSAVANTIS Style
When great design becomes an attraction of its own, you know it will make a difference in your life. Besides bringing beauty to life, this new classic is also designed to bring any modern bathroom to the next level.
Elegant designed Rosetta for good installation coverage
High quality
Sleek design
Made in Europe
Shower and bath faucet - Perfect fit for any bathroom
Features
- Aerator Standard aerator
- Connection Eccentric coupling(s), Cover plate(s)
- Diverter Pull operated diverter, Automatic reset
- Lever/Handle Single operating lever/handle, Pin shape, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass
- Spout Fixed spout
- Color Brushed steel
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

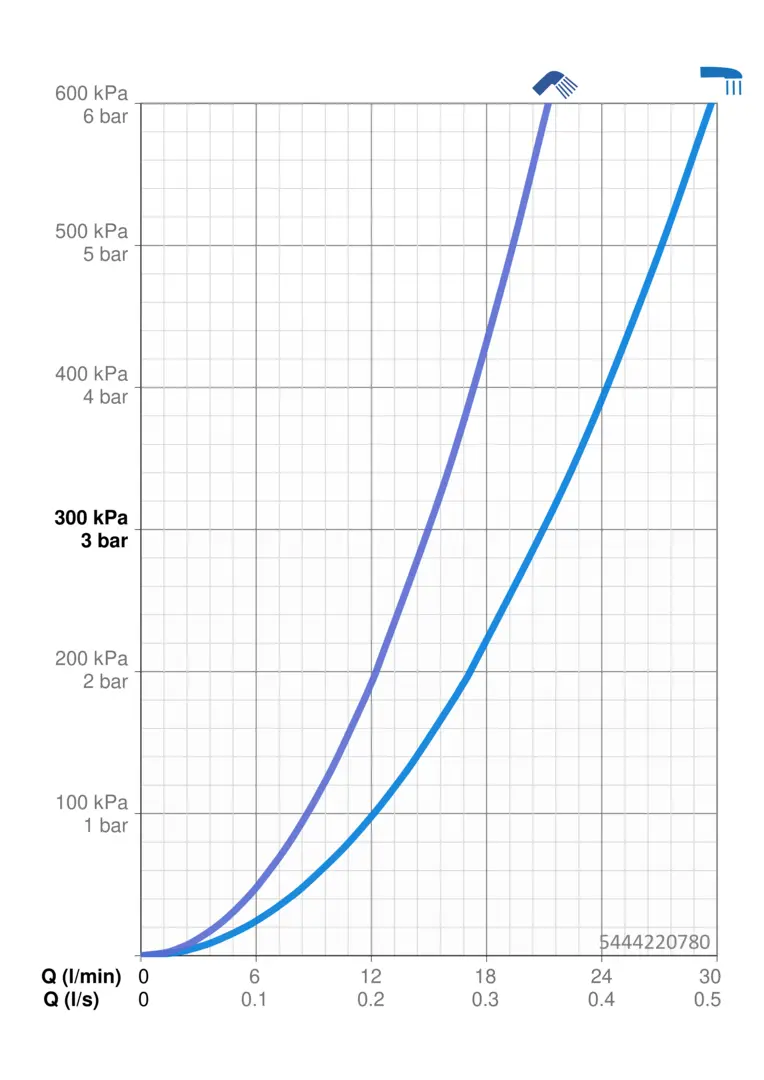

Flow attributes
- Flow-rate at 3 bar 21 / 15 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G3/4
- Hot water supply max. +80°C
- Installation width 150 ± 15 mm
- Material Brass
- Projection 168 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class II (ISO 3822)
Sustainability
- EPD module A1 (kg CO2 eq.) 13,05
- EPD module A1-A3 (kg CO2 eq.) 15,16
- EPD module A2 (kg CO2 eq.) 0,61
- EPD module A3 (kg CO2 eq.) 1,50
- EPD module A4 (kg CO2 eq.) 0,54
- EPD module B7 (kg CO2 eq.) 2637,50
- EPD module C2 (kg CO2 eq.) 0,03
- EPD module C3 (kg CO2 eq.) 0,03
- EPD module C4 (kg CO2 eq.) 1,08
- EPD module D (kg CO2 eq.) -9,62
SP54442207CLR Bath and shower faucet
Ask pricing from your local retailers.
Spare parts | Code | Spare part guide | ||
01 |
|
Diverter (Chrome) |
|
|
02 |
|
Non-return valve |
|
|
03 |
|
Cartridge |
|
|
04 |
|
Tightening nut, M42x1.5, SW 38 |
|
