Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Surfaces in contact with drinking water contain less than 0.3% lead, Inner body made of DZR brass, Waterways without nickel coating, Rapid installation system
- Spout Swivel spout
- Color Matt black
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar 12 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 199 mm
- Spout swivel range 120°
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Sustainability
- EPD module A1 (kg CO2 eq.) 9,27
- EPD module A1-A3 (kg CO2 eq.) 13,79
- EPD module A2 (kg CO2 eq.) 0,44
- EPD module A3 (kg CO2 eq.) 4,08
- EPD module A4 (kg CO2 eq.) 0,27
- EPD module B7 (kg CO2 eq.) 4728,00
- EPD module C2 (kg CO2 eq.) 0,02
- EPD module C3 (kg CO2 eq.) 0,02
- EPD module C4 (kg CO2 eq.) 0,42
- EPD module D (kg CO2 eq.) -7,79
SP0914228333 Kitchen faucet
Ask pricing from your local retailers.

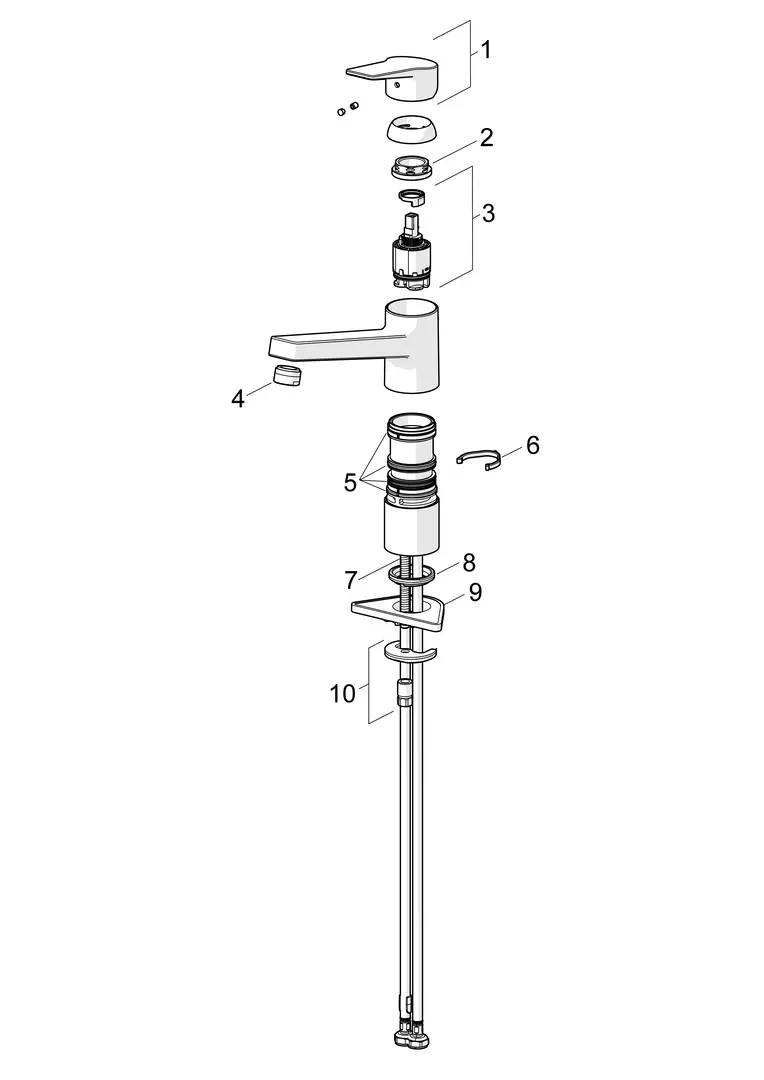

| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Matt black) |
|
|
| 02 |
|
Tightening nut, M37x1, AF30
Discontinued
|
|
|
| 03 |
|
Cartridge, 3.5 Classic |
|
Download |
| 04 |
|
Aerator, STD M24x1 HC A (Matt black) |
|
|
| 05 |
|
Sealing kit |
|
Download |
| 06 |
|
Spout overturning stopper, 120° |
|
|
| 07 |
|
Fixing screw, M8x1, L=140 |
|
|
| 08 |
|
Bottom seal |
|
|
| 09 |
|
Supporting plate |
|
|
| 10 |
|
Fixing set |
|
|
