You are browsing discontinued products.

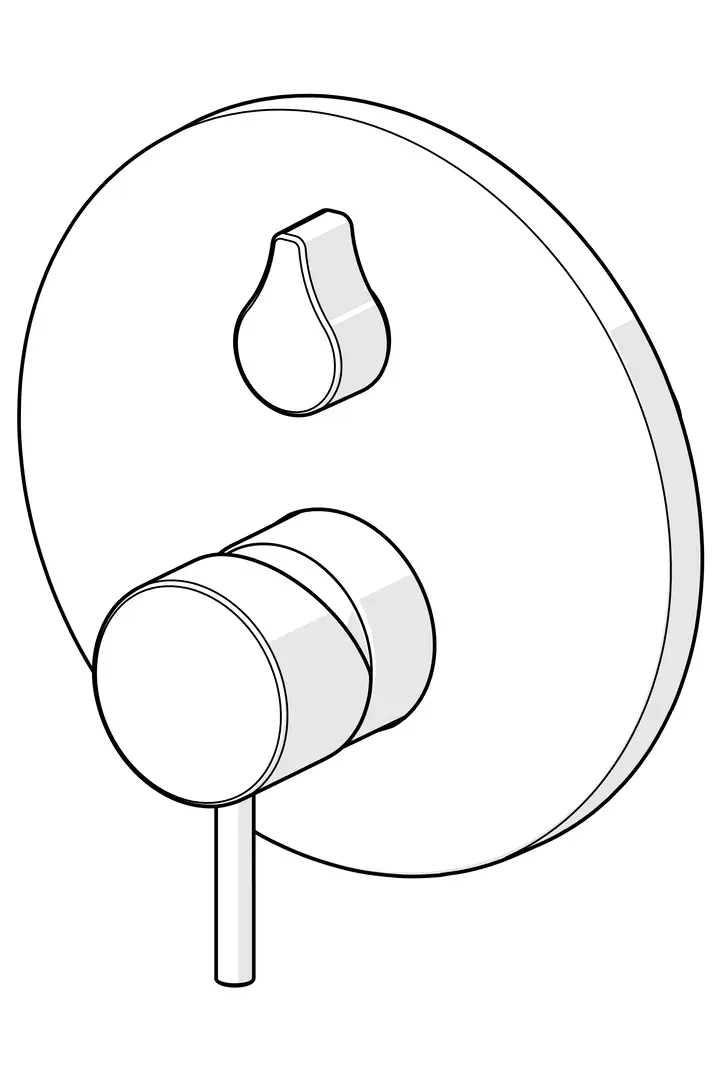

87843041 | Cover part for bath and shower faucet

HANSASTELA

Discontinued
EAN code
4015474287259
Availability date
11/2015 06/2020
Discontinued markets
INT, DEU, AUT, BEL, NLD, CZE, SVK
Replacement product
87843173

Features
  • Diverter Turn operated diverter
  • Concealed parts Round rosette, Fastening of the function unit with screws, BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º
  • Lever/Handle Single operating lever/handle, Hot/Cold symbols, Pin shape
  • Mechanical parts Vacuum breaker, Non-return valve(s), ø 35 mm ceramic cartridge for flow and temperature control
  • Advanced features Inner body made of DZR brass
  • Color Chrome
  • Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes

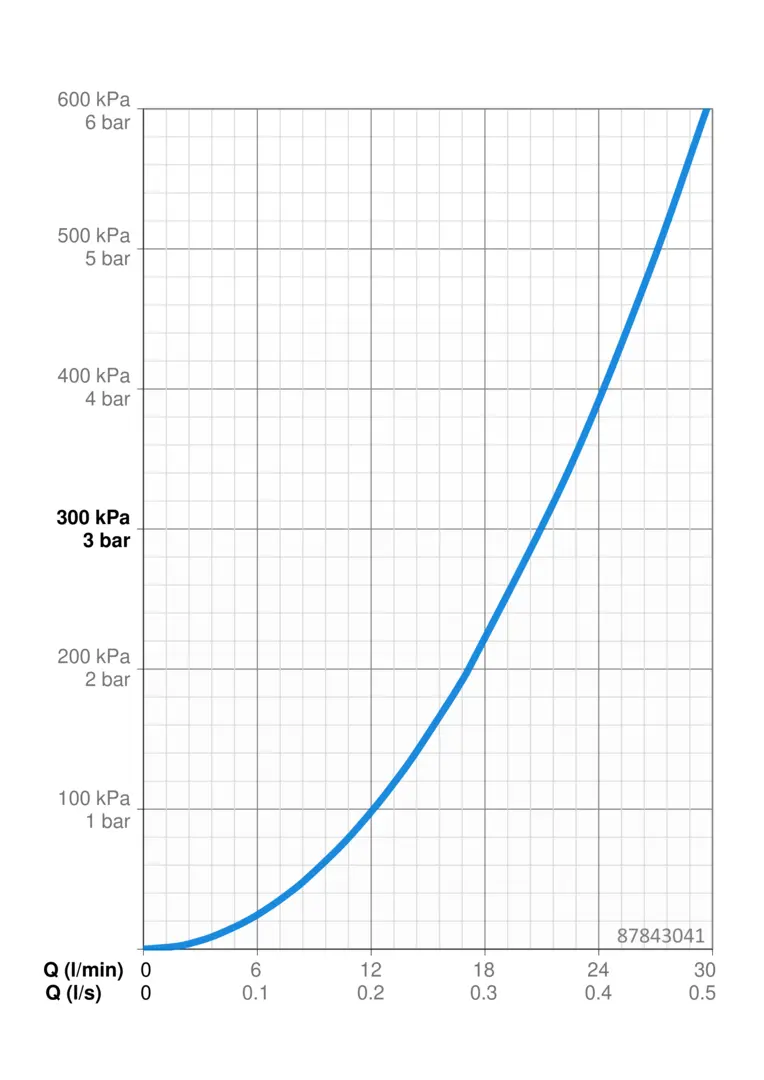

  • Flow-rate at 3 bar 21 / 21 l/min
Technical properties
  • Backflow prevention (EN1717) HD
  • Hot water supply max. +80°C
  • Working pressure 0.5 - 10 bar
Regulations
  • EN standard EN 817
HANSABLUEBOX, Body for bath and shower faucet, G1/2, 80000000
HANSABLUEBOX
Body for bath and shower faucet, G1/2
80000000
HANSABLUEBOX, Body for bath and shower faucet, G3/4, 80010000
HANSABLUEBOX
Body for bath and shower faucet, G3/4
80010000
HANSABLUEBOX, Raising kit, 15 mm, 59914182
HANSABLUEBOX
Raising kit, 15 mm
59914182
HANSABLUEBOX, Adapter, H/C reversed, 59914184
HANSABLUEBOX
Adapter, H/C reversed
59914184
HANSABLUEBOX, Installation kit, 59914186
HANSABLUEBOX
Installation kit
59914186
HANSABLUEBOX, Raising kit, 15 mm, d 170 mm, 59914191
HANSABLUEBOX
Raising kit, 15 mm, d 170 mm
59914191
