Features
- Aerator PCA® - constant flow rate regardless of pressure variations
- Connection Flexible inlet pipes
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass, Rapid installation system
- Spout Swivel spout, Swivel range limiting option
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar (with flow controller) 6 l/min
Technical properties
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +80°C
- Material Brass
- Projection 152 mm
- Working pressure 0.5 - 10 bar
Regulations
- Noise class I (ISO3822)
Approvals
- ACS 16 ACC NY 205
+51542293.png)

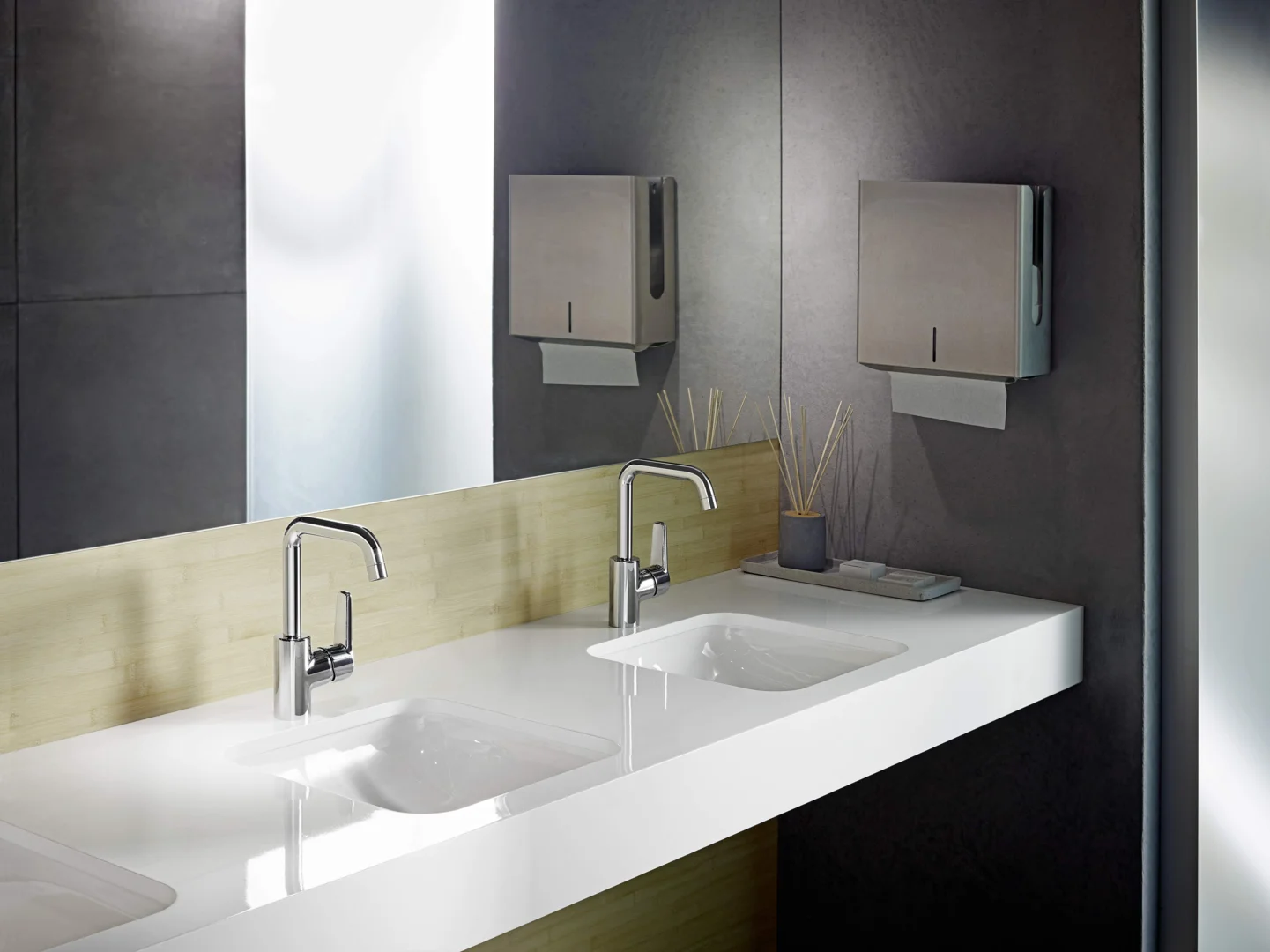

SP51542293 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Spout |
|
Download |
| 02 |
|
Aerator, 6 l/min |
|
|
| 03 |
|
Spout overturning stopper, 120° |
|
|
| 03 |
|
Spout overturning stopper, 60°/0° |
|
|
| 04 |
|
Sealing kit for spout |
|
|
| 05 |
|
Cartridge, 3.5 Classic |
|
Download |
| 06 |
|
Tightening nut, M40x1, SW30 |
|
|
| 07 |
|
Temperature adjustment limiter |
|
|
| 08 |
|
Covering cap, 33 x 3 mm |
|
|
| 09 |
|
Lever |
|
|
| 10 |
|
Fixing screw, M8x1, L=140 |
|
|
| 11 |
|
Fixing set |
|
|
| N.I. |
|
Pop-up waste, (2019-) |
|
|
