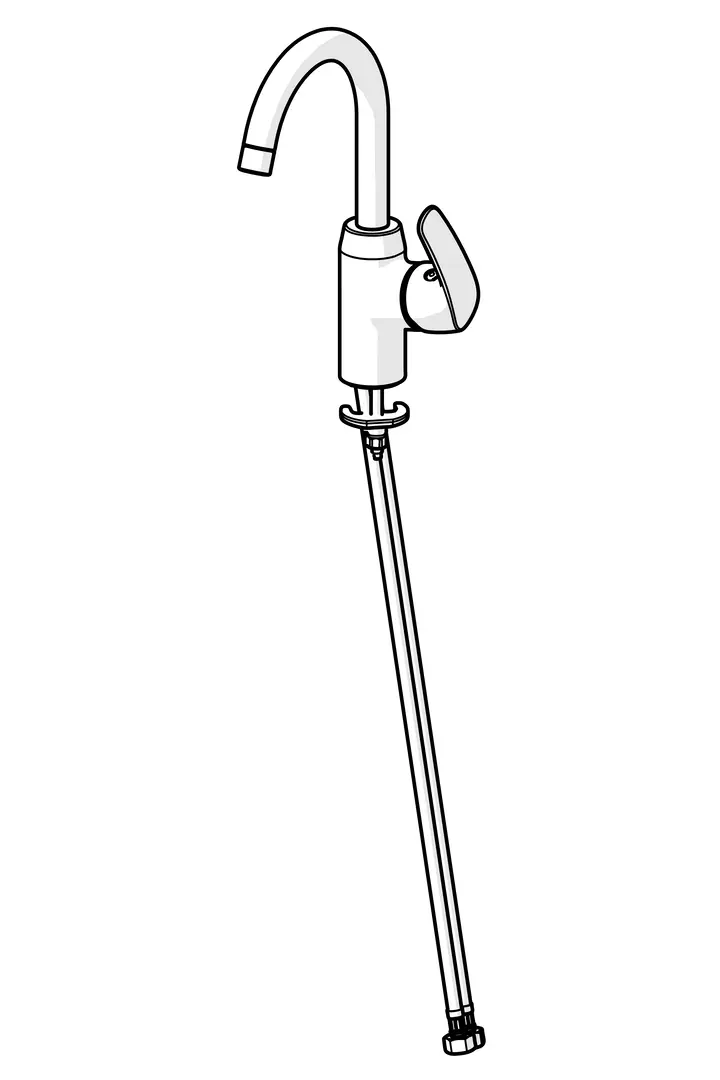

450922830037 | Washbasin faucet
HANSAPINTO
Discontinued
Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G1/2
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass

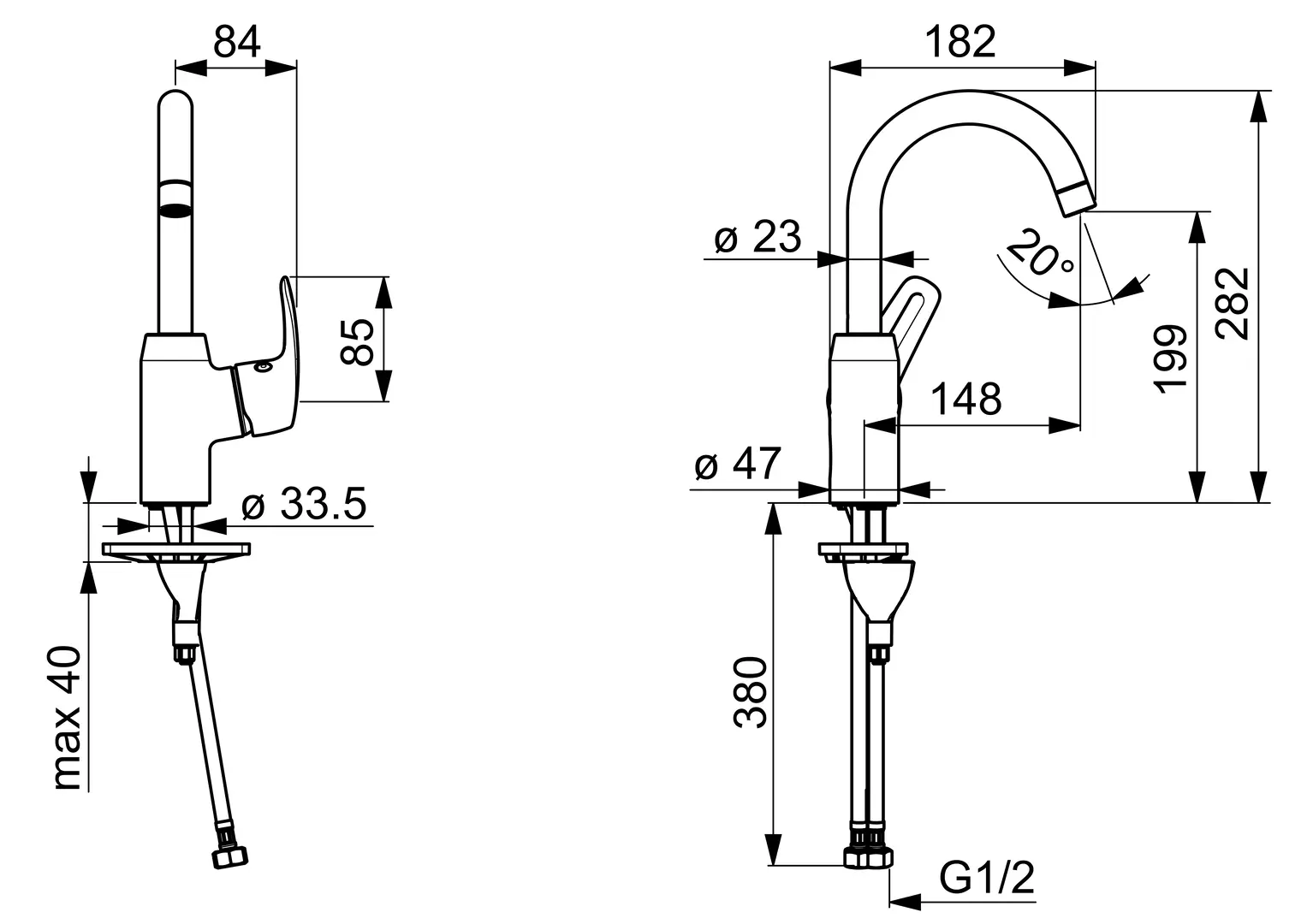

- Projection 148 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
SP450922830037 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 1 |
|
High spout, L=148
(Chrome)
Discontinued
|
|
|
| 2 |
|
Aerator, M22x1 STD CC A (Chrome) |
|
|
| 3 |
|
Spout overturning stopper, 120°
Discontinued
|
|
|
| 4 |
|
Sealing kit for spout |
|
|
| 5 |
|
Cartridge, 4.0 Classic |
|
Download |
| 6 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 7 |
|
Covering cap
(Chrome)
Discontinued
|
|
|
| 8 |
|
Lever
(Chrome)
Discontinued
|
|
|
| 9 |
|
Bottom seal |
|
|
| 10 |
|
Fixing screw, M8x1, L=130 |
|
|
| 11 |
|
Fixing set |
|
Download |
| N.I. |
|
Screw, M4x8 |
|
|
| N.I. |
|
Symbol plug |
|
|
