Features
- Aerator Standard aerator, PCA® - constant flow rate regardless of pressure variations
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Advanced features Inner body made of DZR brass, 3S-installation system for safe and simple mounting
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

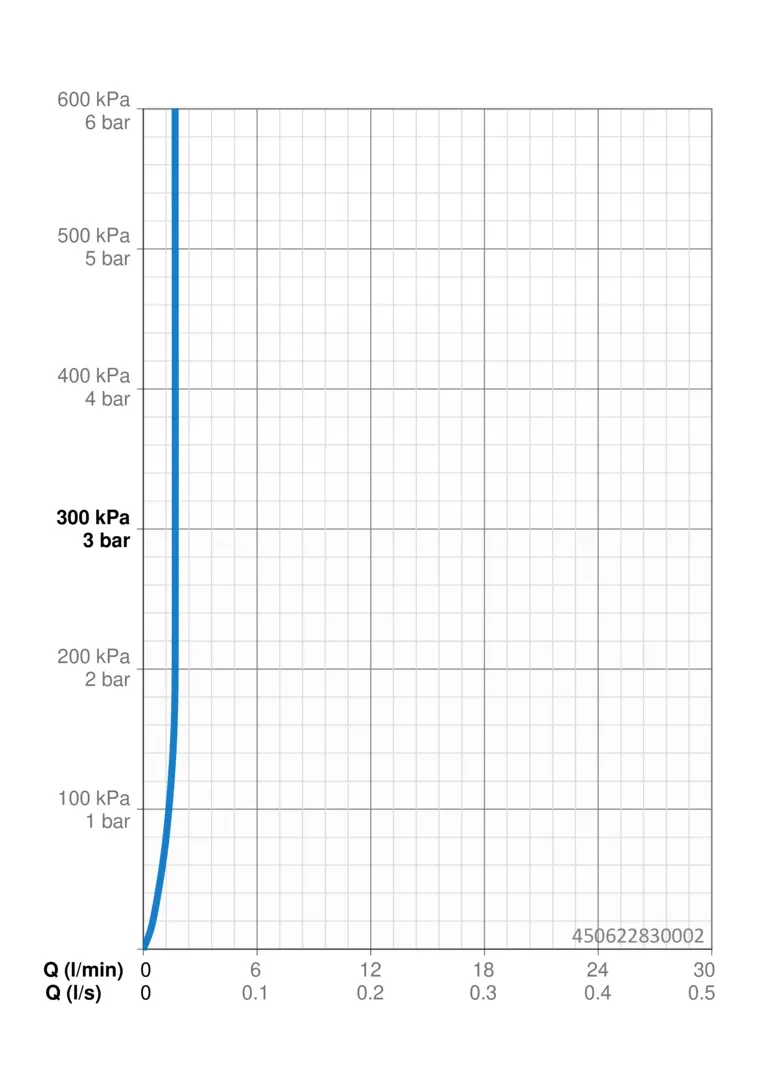

Flow attributes
- Flow-rate at 3 bar (with flow controller) 1.68 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 107 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Approvals and Declarations
- KIWA K6116/08
+45052283+SP1012F-GB.webp)
SP45052283 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Covering cap (Chrome) |
|
|
| 03 |
|
Tightening nut, M42x1,5, SW 38 |
|
|
| 04 |
|
Cartridge, 4.0 Classic |
|
Download |
| 05 |
|
Fixing screw, M8x1, L=130 |
|
|
| 06 |
|
Fixing set |
|
Download |
| 07 |
|
Aerator, M24x1, 6 l/min (Chrome) |
|
|
| 08 |
|
Bottom seal |
|
|
| 09 |
|
Nipple
Discontinued
|
|
|
| N.I. |
|
Flexible pipe, L=375, G3/8-M10x1 |
|
|
| N.I. |
|
Pop-up waste, (2019-) (Chrome) |
|
|
