Variants
450822830037 | Kitchen faucet
HANSAPINTO
Discontinued
Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

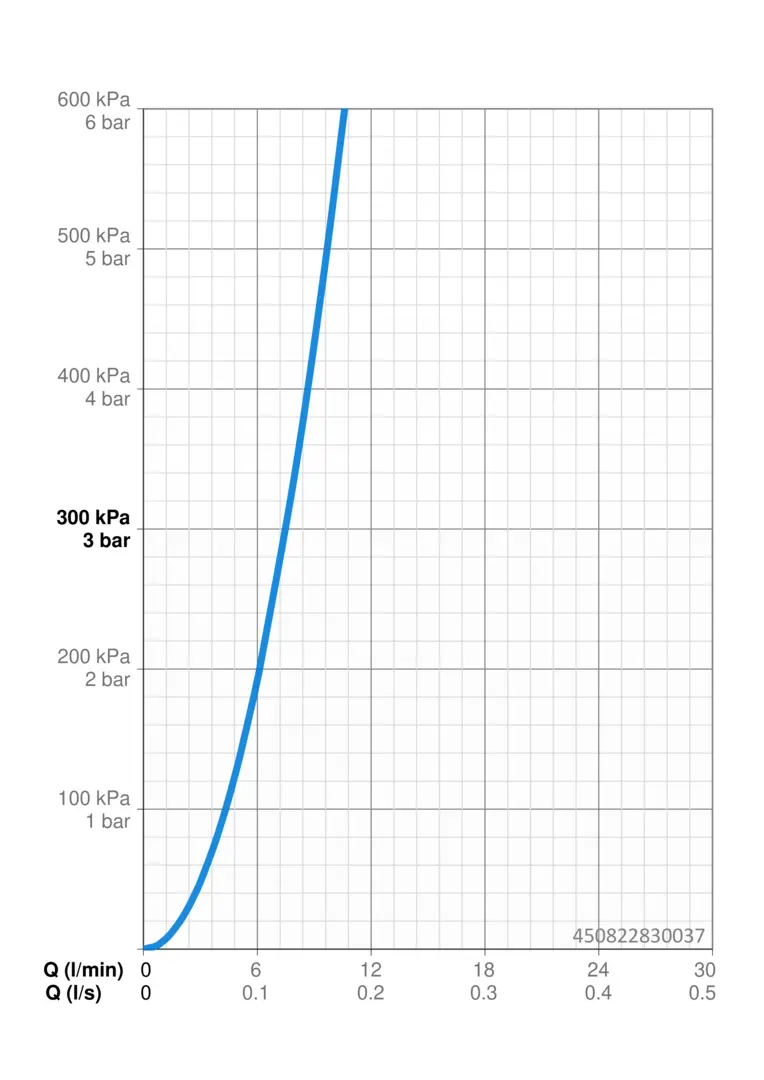

Flow attributes
- Flow-rate at 3 bar 7.5 l/min

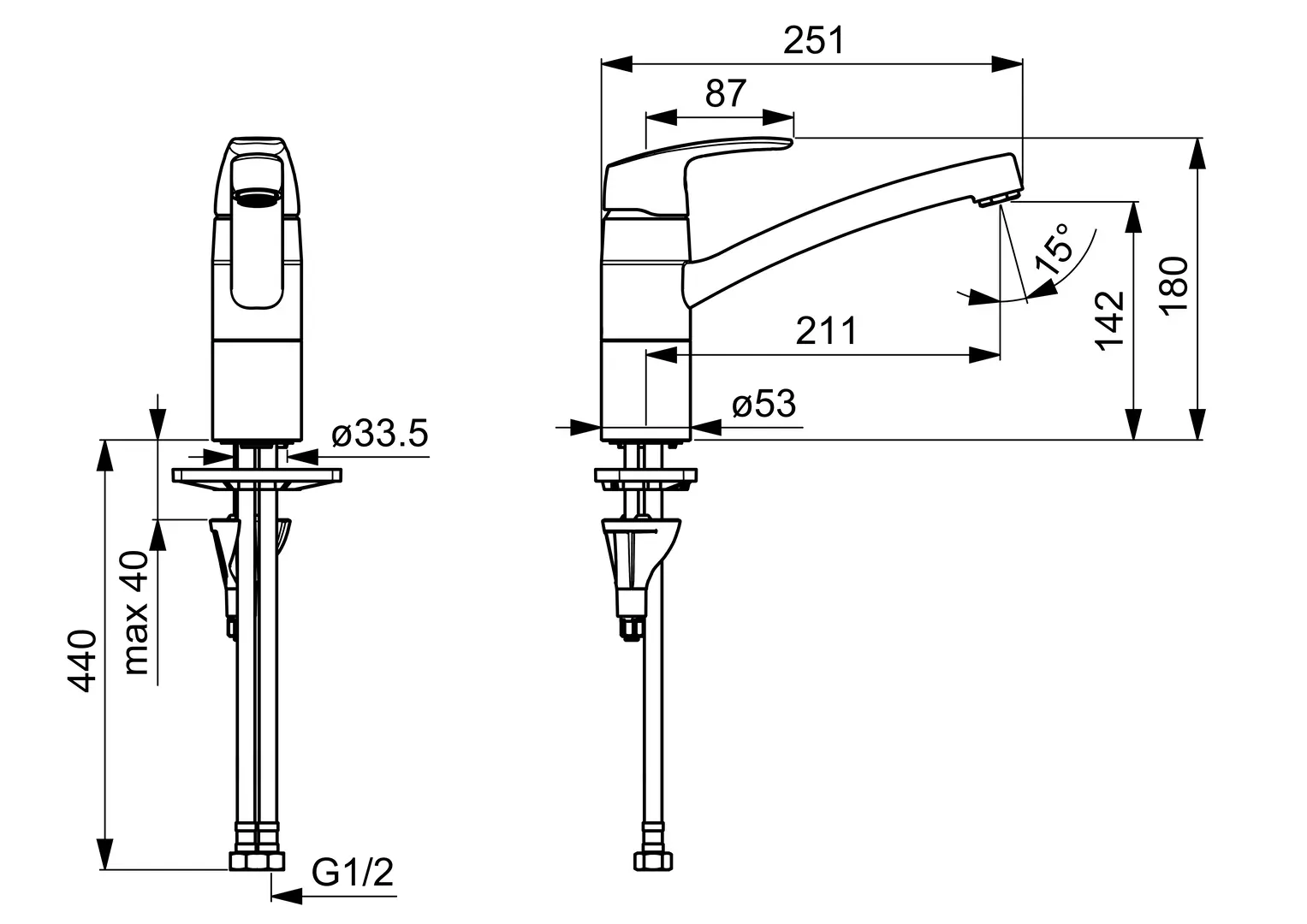

Technical properties
- Connection size G1/2
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 211 mm
- Spout swivel range 120° (80° / 40°)
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
- Noise class I (ISO 3822) Oras lab.
+SP450822830037.webp)
SP45082283 Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Covering cap
(Chrome)
Discontinued
|
|
|
| 03 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 04 |
|
Cartridge, low pressure, 4.0 |
|
Download |
| 04 |
|
Cartridge, 4.0 Classic |
|
Download |
| 05 |
|
Spout, L=210
(Chrome)
Discontinued
|
|
|
| 06 |
|
Spout overturning stopper, 40°-80° |
|
Download |
| 06 |
|
Spout overturning stopper, 120° |
|
|
| 07 |
|
Fixing screw, M8x1, L=130 |
|
|
| 08 |
|
Fixing set |
|
Download |
| 09 |
|
Aerator, M24x1
Discontinued
|
|
|
| 09 |
|
Aerator, M24x1
(Chrome)
Discontinued
|
|
|
| 09 |
|
Aerator, M24x1 A, low pressure (Chrome) |
|
|
| 10 |
|
Bearing ring
Discontinued
|
|
|
| 11 |
|
X-sealing set |
|
Download |
| 12 |
|
Bearing ring
Discontinued
|
|
|
| 13 |
|
Bottom seal |
|
|
| 14 |
|
Supporting plate |
|
|
