HANSANOVA

EAN code
4015474564794

Active markets
DEU, AUT, BEL, NLD, ITA, CZE, SVK

Find local retailer

Datasheet

HANSANOVA

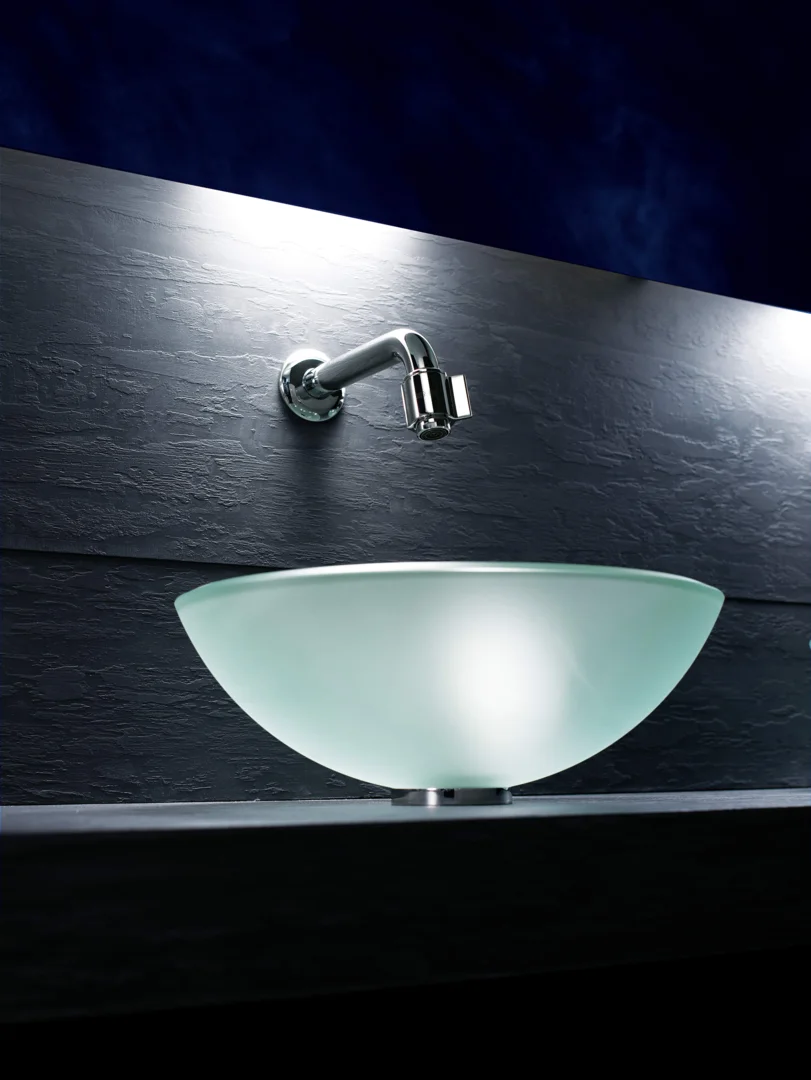

Doing without hot water does not mean that you also have to limit your aesthetic requirements. HANSANOVA provides compelling evidence of this. With cool, clear lines and confident curves, the cold water outlet is one of the truly great classics in the HANSA range - and thanks to consistent modifications, it is more contemporary than ever. A new control element with delicate lever coherently integrates function with form on the HANSANOVA STYLE; various colours and an optional thermostat add to the already broad application range. As a pillar tap or wall outlet, the HANSANOVA STYLE can be installed almost without any space restrictions and goes with a wide range of styles and furnishings.

Discover All products

Features

Aerator Standard aerator
Connection One inlet for cold or premixed water
Lever/Handle Single operating lever/handle
Mechanical parts Ceramic head part for flow control
Advanced features Flexible length / can be shortened
Spout Fixed spout
Color Chrome

Flow attributes

Flow-rate at 3 bar 6 l/min

Technical properties

Backflow prevention (EN1717) AA
Connection size G1/2
DN-size (nominal dimension) DN15
Hot water supply max. +80°C
Material Brass
Projection 186 mm
Working pressure 0.5 - 10 bar

Regulations

EN standard EN 200
Noise class I (ISO 3822)

SP00868101 Washbasin faucet

Ask pricing from your local retailers.

	Spare parts		Code	Spare part guide
1.1		Nipple Discontinued	59905534
2		Headpart, (1999-) (White) Discontinued	59911775
2		Headpart, (1999-) (Chrome)	59911780
2.1		Headpart, (1999-)	59911777
2.2		Lever, (1999-) (Chrome)	59911781
2.3		Fixing screw, M4, SW2	59911778
2.4		Tool	59912334
4		Aerator, M24x1 A (White) Discontinued	59905419
4		Aerator, M24x1 Z (Chrome)	59906826
4.1		Aerator, M22/24, Z	59906830
5		Aerator, M24x1 STD CC Z	59905721
5.1		Key for aerator	59905789
6		Covering cap (Chrome) Discontinued	59905678
7		Coupling pipe Discontinued	59910629
