HANSAMIX

Discontinued

EAN code
4015474075368

Availability date
07/2003 → 12/2008

Discontinued markets
INT, DEU, AUT, NLD, CZE, SVK

HANSAMIX

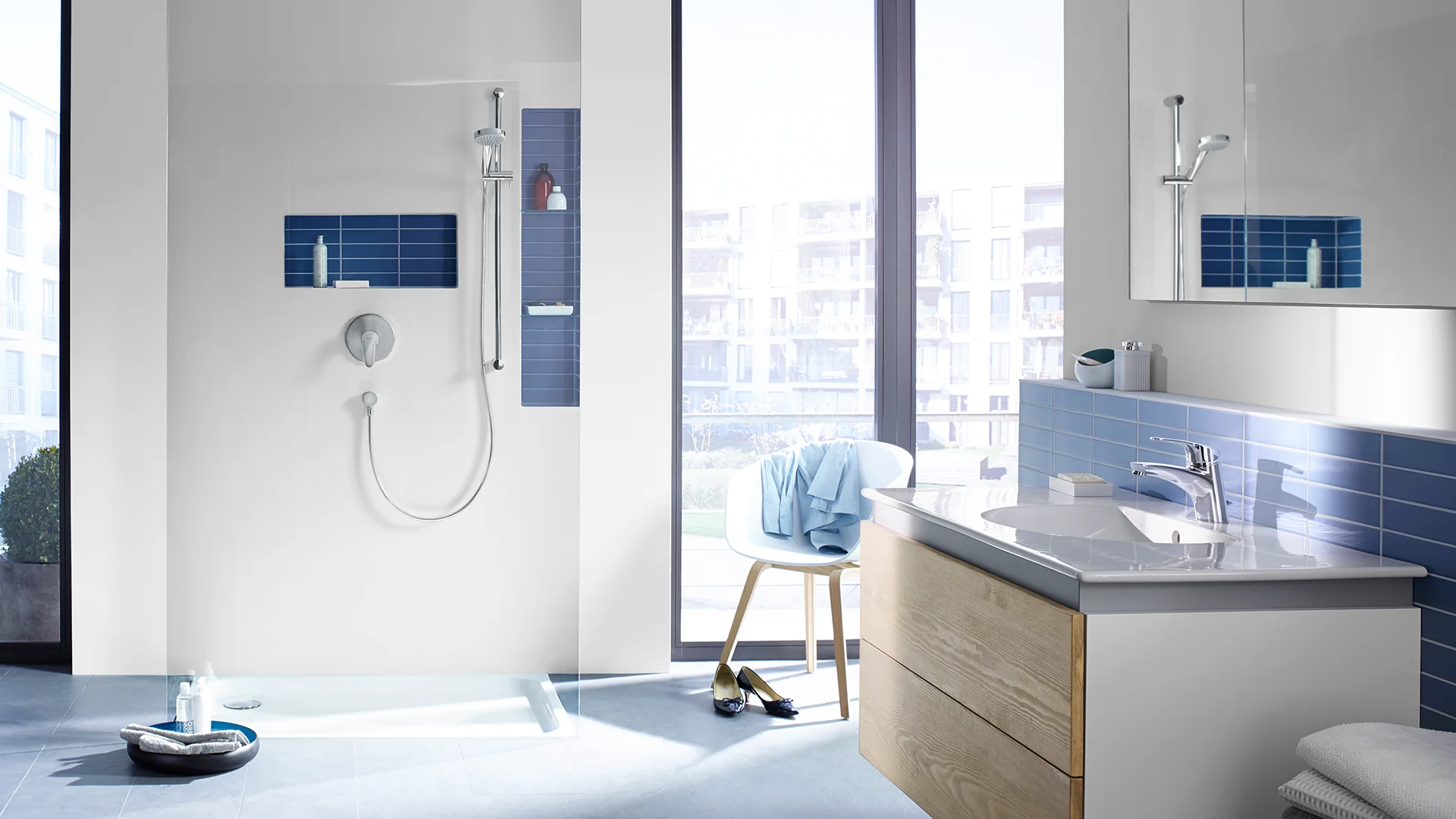

HANSAMIX is one of the most successful and popular HANSA fittings ever. Since it was launched on the market in 1978, it has embodied the key HANSA values of sophisticated technology and superlative quality down to the finest detail. Now in its 4th generation, HANSAMIX is particularly convincing with its extensive, and flexible product selection. For the basin alone, there are three versions with different dimensions and functions. Contemporary: The HANSAMIX concept guarantees optimum drinking water hygiene, high levels of convenience and maximum safety.

Discover All products

Features

Aerator Standard aerator
Connection Copper inlet pipes
Extensions Pop-up waste with draw-rod
Lever/Handle Hot/Cold symbols, Single operating lever/handle
Mechanical parts ø 48 mm ceramic eco cartridge for flow and temperature control
Mounting holes 1 hole
Advanced features Waterways without nickel coating
Spout Fixed spout
Color Chrome/Gold
Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

Technical properties

Connection size Ø 10 mm
DN-size (nominal dimension) DN15
Hot water supply max. +80°C
Material Brass
Projection 123 mm
Working pressure 0.5 - 10 bar

Regulations

EN standard EN 817

SP01092173 Washbasin faucet

Ask pricing from your local retailers.

	Spare parts		Code	Spare part guide
1		Lever, L=87 mm	59914195
1		Long lever, L=138 (Chrome)	01880076
1.1		Screw, M5x8, SW2.5	59904755
1.2		Bushing	59904778
1.3		Symbol plug (Grey)	59912112
2		Covering cap (White) Discontinued	59912639
2		Covering cap (Gold) Discontinued	59912640
2		Covering cap (Chrome)	59912638
3		Eye screw, M50x1, SW45	59904775
3.1		O-ring, d 43x2.5	59911166
4		Cartridge, 4.8 Eco-Top	59911431	Download
4		Cartridge, 4.8 eco	59904601	Download
4.1		Hot water limiter	59904759
5.1		Pop-up operating rod (Chrome) Discontinued	59913033
5.2		Swivel joint	59904624
5.3		Gasket, 37x48x3.5	59911422
5.5		Fixing plate Discontinued	59904765
5.6		Screw, M8x1, SW13 Discontinued	59904766
5.7		Fixing set	59910749
5.8		Hose	59912709
5.8		Installation coupling pair (Chrome)	59911791
5.9		Coupling pipe, L=430, M10x1	59912550
5.9		Flexible pipe, L=430, G3/8-M10x1	59912515
5.12		Fixing screw, M8x1, L=140	59912474
6		Aerator, M24x1 A (White) Discontinued	59905419
6		Aerator, M24x1 STD HC A (Chrome)	59902366
6		Aerator, M24x1 (2011-)	59913739
6.1		Aerator, M22/24 A	59902081
7		Pop-up waste (Chrome)	59904620
N.I.		Installation kit Discontinued	59913083
