Features
- Additional features protected against back-flow in domestic use (according to DIN EN 1717)
- Aerator Standard aerator
- Connection Eccentric coupling(s)
- Diverter Turn operated diverter, Integrated into flow control handle
- Lever/Handle Temperature control handle, Flow control handle
- Mechanical parts Thermostatic cartridge for automatic temperature control, Litter filter(s), Ceramic head part for flow control
- Shower parts Eco flow control
- Advanced features Inner body made of DZR brass
- Spout Fixed spout
- Color Matt black
- Temperature The housing of the fittings conducts minimal heat, Safety stop against scalding at 38°C
Flow attributes
- Eco-flow at 3 bar 9.6 l/min
- Flow-rate at 3 bar 20.4 / 19.2 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G1/2
- DN-size (nominal dimension) DN15
- Hot water supply max. +80°C
- Installation width cc150 ± 15 mm
- Material Brass/Plastic
- Projection 159 mm
- Working pressure 1 - 10 bar
Regulations
- EN standard EN 1111
- Noise class II (ISO 3822)
Sustainability
- EPD module A1 (kg CO2 eq.) 8,82
- EPD module A1-A3 (kg CO2 eq.) 10,24
- EPD module A2 (kg CO2 eq.) 0,41
- EPD module A3 (kg CO2 eq.) 1,02
- EPD module A4 (kg CO2 eq.) 0,37
- EPD module B7 (kg CO2 eq.) 1688,00
- EPD module C2 (kg CO2 eq.) 0,02
- EPD module C3 (kg CO2 eq.) 0,02
- EPD module C4 (kg CO2 eq.) 0,73
- EPD module D (kg CO2 eq.) -6,50

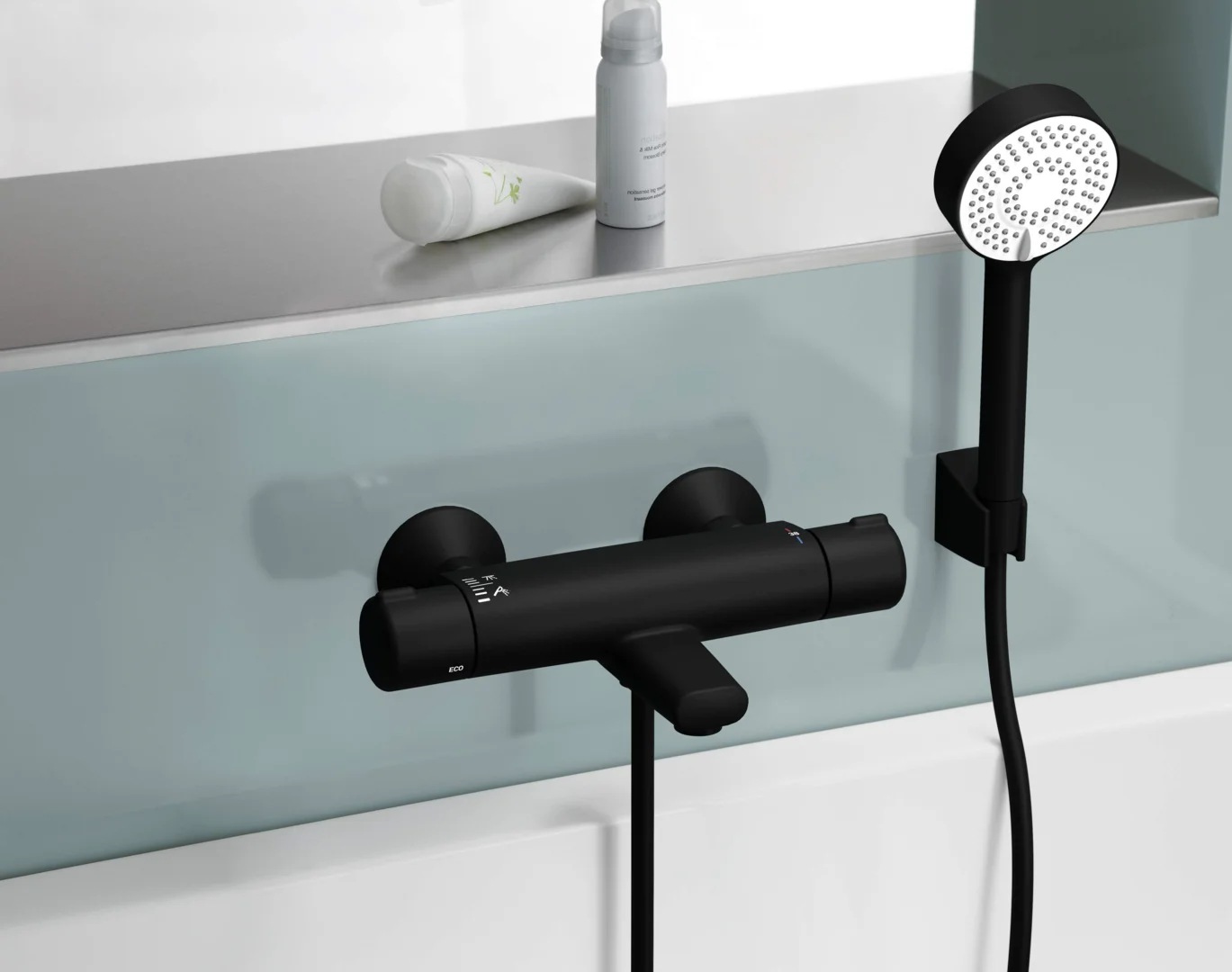

SP5816217133 Bath and shower faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 2 |
|
Diverter and cartridge |
|
Download |
| 3 |
|
Filter sealing, G3/4 |
|
|
| 5 |
|
O-ring kit |
|
|
| 6 |
|
Thermostatic cartridge, 3.4 |
|
Download |
