Features
- Advanced features Inner body made of DZR brass, Rapid installation system
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Extensions Pop-up waste with draw-rod
- Spout Fixed spout
- Color Chrome
- Temperature Adjustable hot water stop (included, retrofittable)
- Aerator PCA® - constant flow rate regardless of pressure variations, Hidden aerator
- Mounting holes 1 hole
- Connection Copper inlet pipes
Flow attributes
- Flow-rate at 3 bar (with flow controller) 6 l/min
Technical properties
- Hot water supply max. +80°C
- Working pressure 0.5 - 10 bar
- Material Brass
- Connection size Ø 10 mm

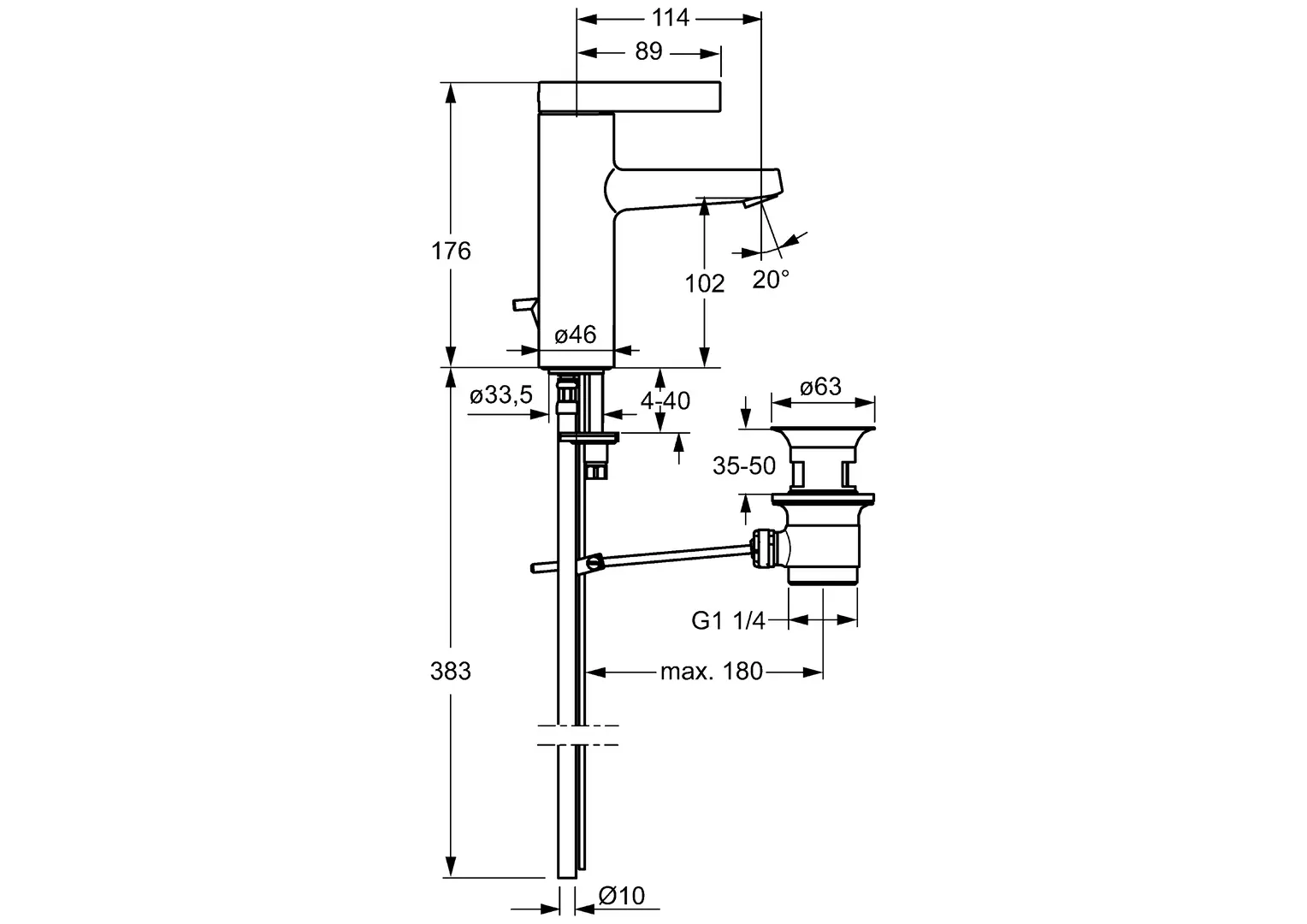

- Projection 114 mm
- DN-size (nominal dimension) DN15
Regulations
- EN standard EN 817
SP57542103 Washbasin faucet
Ask pricing from your local retailers.

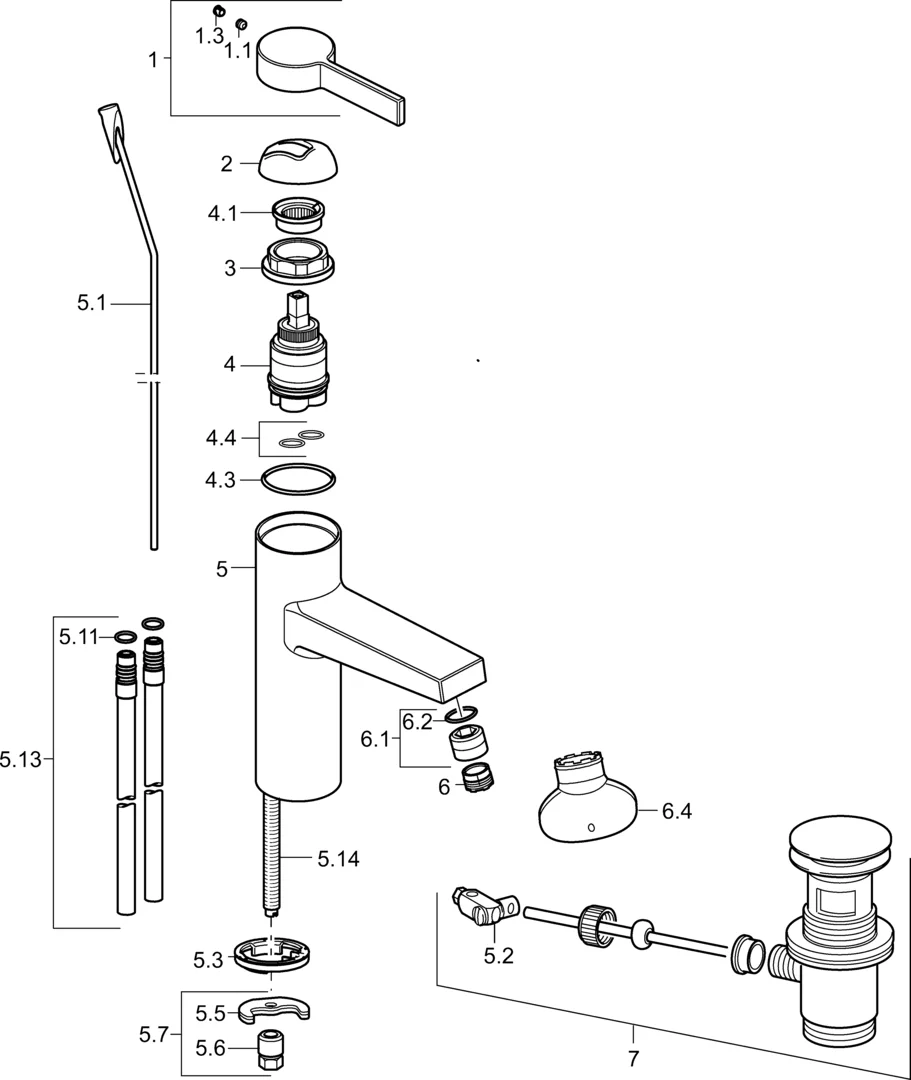

| Spare parts | Code | Spare part guide | ||
| 1 |
|
Lever (Chrome) |
|
|
| 1.1 |
|
Screw, M5x6, SW2.5 |
|
|
| 1.3 |
|
Cover plug (Chrome) |
|
|
| 2 |
|
Covering cap (Chrome) |
|
|
| 3 |
|
Screw, M42x1, SW34 |
|
|
| 4 |
|
Cartridge, 3.5 Eco |
|
|
| 4 |
|
Cartridge, 3.5 Classic |
|
Download |
| 4.1 |
|
Temperature adjustment limiter
Discontinued
|
|
|
| 4.3 |
|
O-ring, d 28.24x2.62
Discontinued
|
|
|
| 4.4 |
|
O-ring, d 10.10x1.60
Discontinued
|
|
|
| 5.1 |
|
Pop-up operating rod (Chrome) |
|
|
| 5.2 |
|
Swivel joint |
|
|
| 5.3 |
|
Bottom seal |
|
|
| 5.5 |
|
Fixing plate
Discontinued
|
|
|
| 5.6 |
|
Screw, M8x1, SW13
Discontinued
|
|
|
| 5.7 |
|
Fixing set |
|
|
| 5.11 |
|
O-ring, d 7.65x1.78 |
|
|
| 5.13 |
|
Coupling pipe, M10x1, L=480 |
|
|
| 5.14 |
|
Fixing screw, M8x1, L=140 |
|
|
| 6 |
|
Aerator, M18.5x1, TJ |
|
|
| 6.1 |
|
Fitting ring for aerator (Chrome) |
|
|
| 6.4 |
|
Key for aerator, M18.5x1 |
|
|
| 7 |
|
Pop-up waste (Chrome) |
|
|
| N.I. |
|
Key, SW30/34 |
|
|
