5765210033 | Spout, L=197

HANSALOFT

Name: HANSALOFT 5765210033
Brand: Oras

EAN code
4057304015717

Active markets
DEU, AUT, BEL, NLD, ITA, CZE, SVK

Find local retailer

Datasheet

HANSALOFT

For bathrooms designed along clear, cubic lines For those who value space in rooms as well as in thought then the side-controlled HANSALOFT is the perfect fitting. Completely free of disturbing influences and distracting elements, it not only shapes the basin area, but the entire room. It challenges and provokes with a purposeful sense of design that is only rarely to be found. Flat surfaces with a mirror finish, varying angles, and perfect edges result in a functional work of art with an impressive presence that continuously offers new and surprising views from various perspectives. The new touch-free variant is the logical extension of this philosophy: here, intelligent technology becomes a factor that not only supports, but also further streamlines the expressive design.

Discover All products

Features

Aerator Hidden aerator
Concealed parts Square rosette, Round rosette
Advanced features Inner body made of DZR brass
Spout Fixed spout, Casted construction
Color Matt black

Flow attributes

Flow-rate at 3 bar 39 l/min

Technical properties

Connection size G1/2
DN-size (nominal dimension) DN15
Hot water supply max. +80°C
Material Brass
Projection 197 mm

SP5765210033 Spout

Ask pricing from your local retailers.

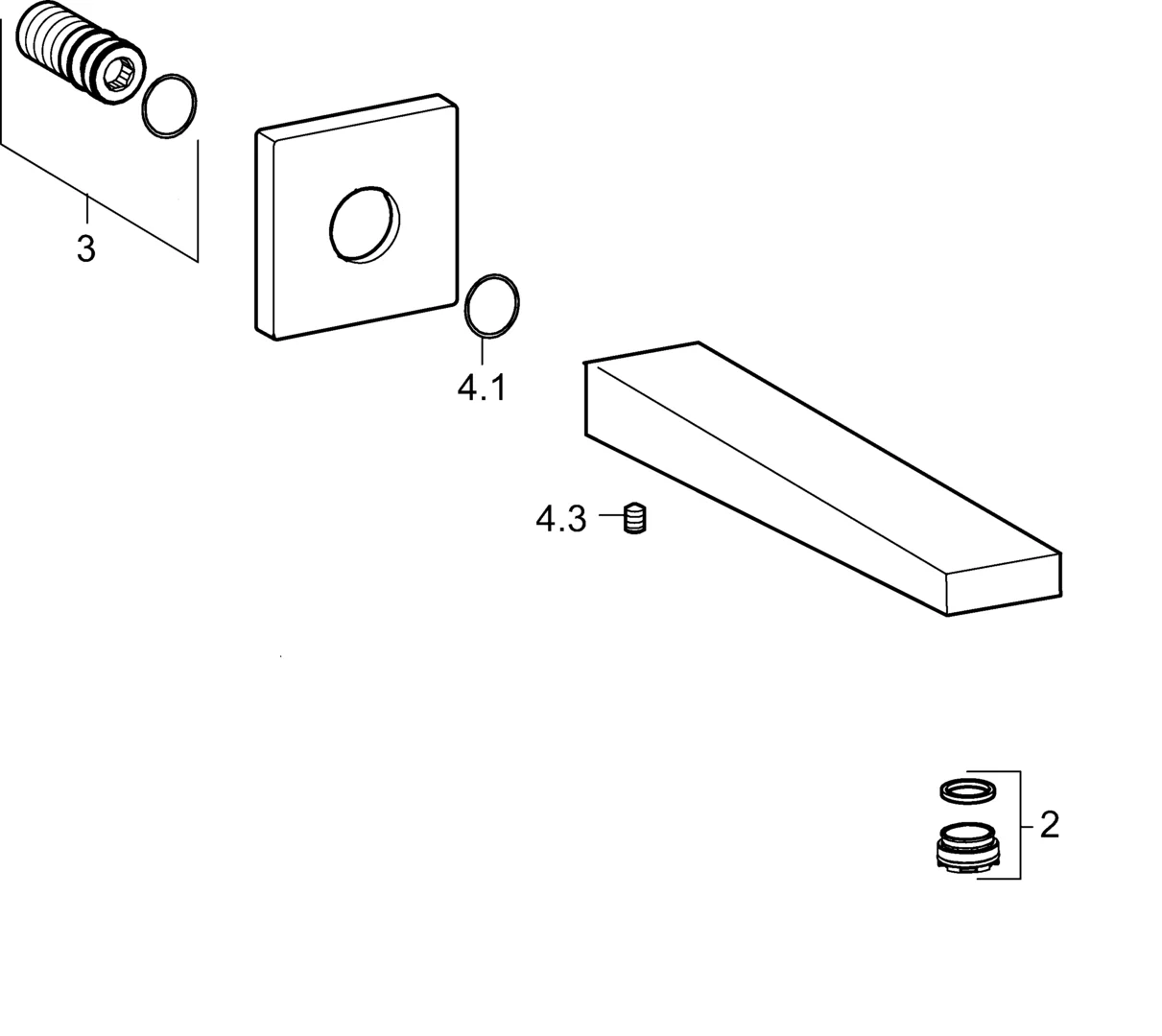

	Spare parts		Code	Spare part guide
2		Aerator, M24x1	59913132
2.2		Key for aerator, M24x1	59913134
3		Thread nipple	59913658
4.1		O-ring, d 26x2	59913423
4.3		Screw, M5x6, SW2.5	59912617

HANSA

Key for aerator, SLIM AIR

59914013
