Features
- Additional features protected against back-flow in domestic use (according to DIN EN 1717)
- Aerator Standard aerator, Hidden aerator
- Diverter Pull operated diverter, Automatic reset
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts Non-return valve(s), ø 35 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Number of spray functions 1 spray function
- Shower parts Hand shower, Shower holder, Shower hose (1250 mm)
- Shower spray Intense - invigorating water stream
- Advanced features Inner body made of DZR brass
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar 20.4 / 13.2 l/min
Technical properties
- Backflow prevention (EN1717) EB
- DN-size (nominal dimension) DN15
- Hot water supply max. +65°C
- Projection 200 mm
- Working pressure 1 - 10 bar
Regulations
- EN standard EN 817, EN 1112, EN 1113

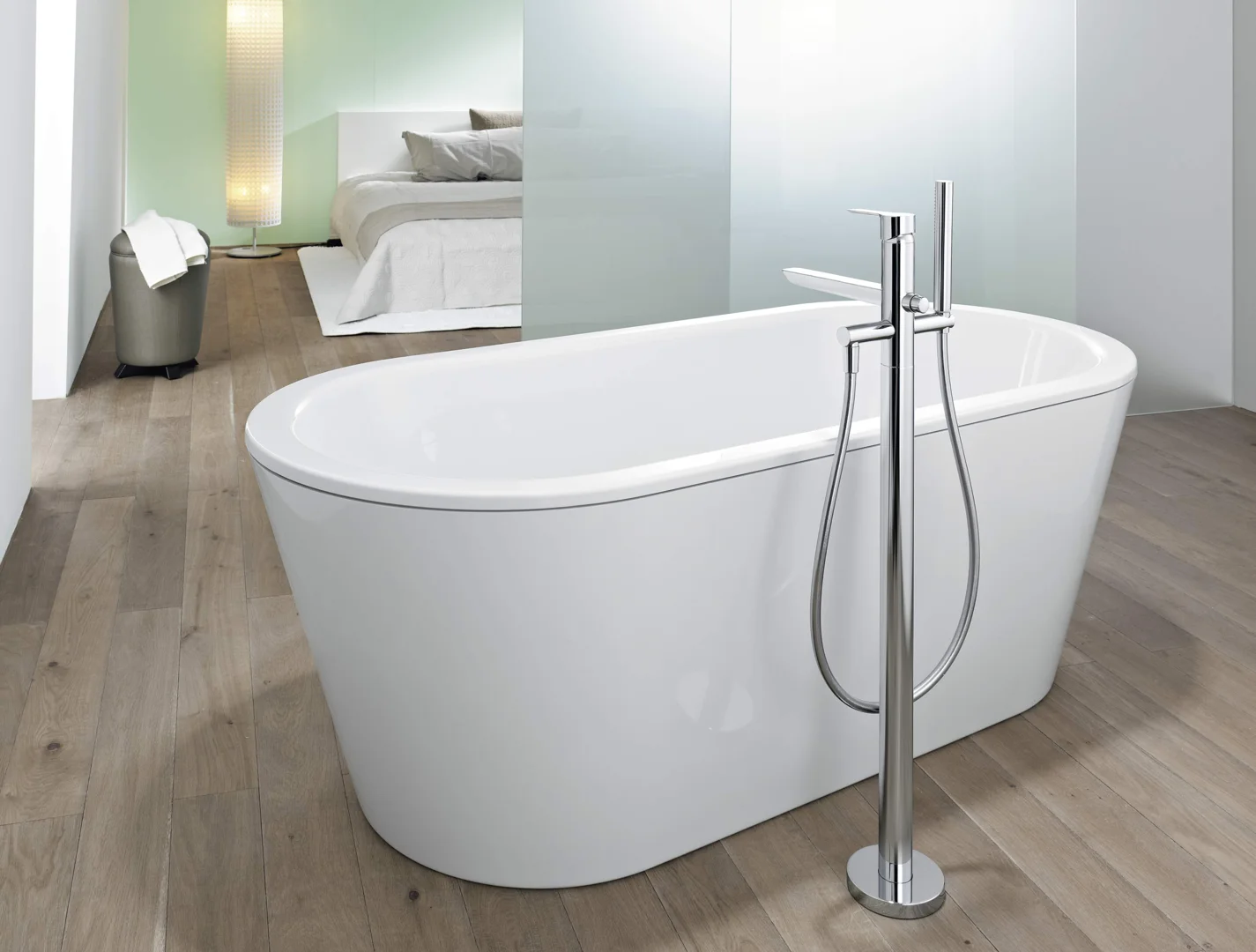

SP06462083 Bath faucet, floor mounting
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Symbol plug (Grey) |
|
|
| 03 |
|
Screw, M5x8, SW2.5 |
|
|
| 04 |
|
Covering cap, 33x3 mm (Chrome) |
|
|
| 05 |
|
Tightening nut, M40x1 |
|
|
| 06 |
|
Cartridge, 3.5 Classic |
|
Download |
| 07 |
|
Hand shower holder
(Chrome)
Discontinued
|
|
|
| 08 |
|
Aerator, M24x1 D, CC |
|
|
| 09 |
|
Shower pipe (Chrome) |
|
|
| 10 |
|
Non-return valve |
|
|
| 11 |
|
Thread nipple, G1/2xM18x1 |
|
|
| 12 |
|
Diverter |
|
|
| 13 |
|
Diverter |
|
|
| 14 |
|
Sealing kit |
|
|
| 15 |
|
Knob (Chrome) |
|
|
| 16 |
|
Cover flange, d 135 mm
(Chrome)
Discontinued
|
|
|
| 17 |
|
Fixing set
Discontinued
|
|
|
