Features
- Additional features Safety lock against scalding 38°C (36°-44°)
- Aerator Laminar stream
- Connection Eccentric coupling(s), Cover plate(s), with integrated shut-off valve(s), Silencer(s), Cover plate triple sealed
- Lever/Handle Temperature control handle, Flow control handle, Eco feature for water flow
- Mechanical parts Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
- Advanced features Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment
- Spout Swivel spout, Lockable in the middle position, Swivel range limiting option, Profile construction
- Color Chrome
- Temperature The housing of the fittings conducts minimal heat
Flow attributes
- Flow-rate at 3 bar 11.4 l/min
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G1/2
- Hot water supply max. +80°C
- Installation width 150 ± 10 mm
- Material Brass
- Projection 285 mm
- Working pressure 1 - 10 bar
Regulations
- EN standard EN 1111
- Noise class I (ISO 3822)
SP08806202 Washbasin faucet
Ask pricing from your local retailers.

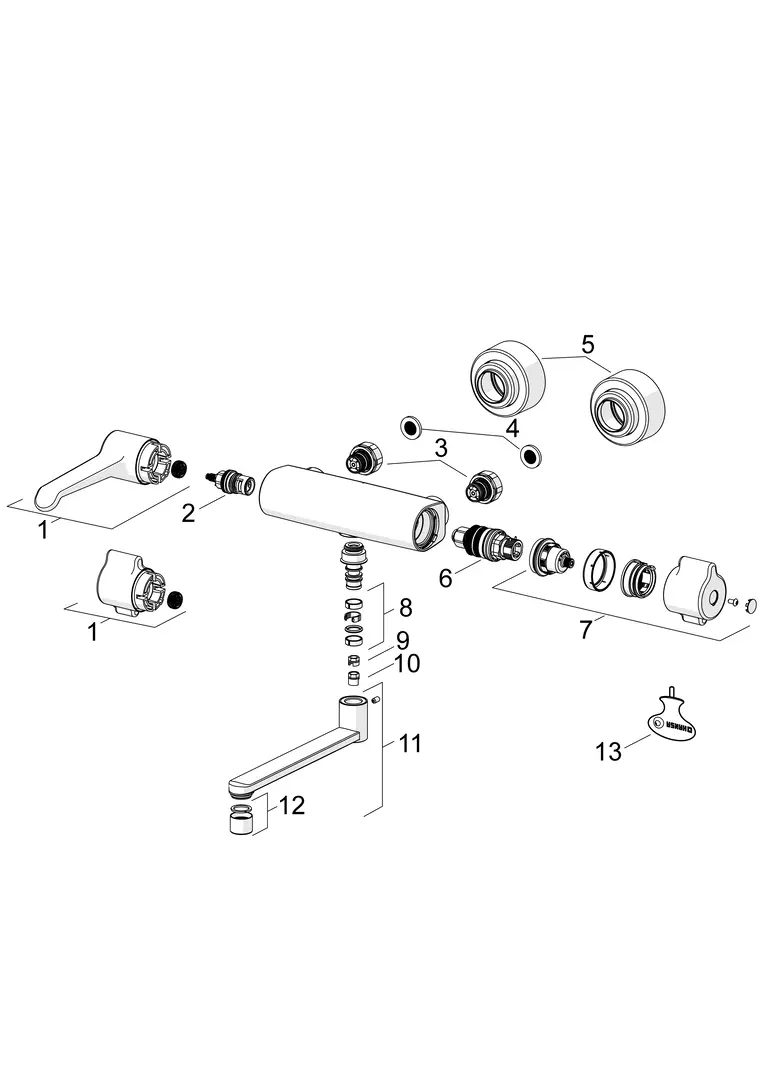

Spare parts | Code | Spare part guide | ||
01 |
|
Flow control handle (Chrome) |
|
|
01 |
|
Flow control handle, L=150 mm (Chrome) |
|
|
02 |
|
Headpart, G1/2 |
|
|
03 |
|
Combiner |
|
|
04 |
|
Filter sealing, G3/4 |
|
|
05 |
|
Cover flange (Chrome) |
|
|
06 |
|
Thermostatic cartridge, 3.4 |
|
Download |
07 |
|
Temperature control handle (Chrome) |
|
|
08 |
|
Sealing kit for spout (Chrome) |
|
|
09 |
|
Limiter, 120° |
|
|
10 |
|
Spout overturning stopper, 60°/0° |
|
|
11 |
|
Spout, L=200 (Chrome) |
|
|
12 |
|
Aerator, M22x1 STD PL HC A Laminar (Chrome) |
|
|
13 |
|
Key |
|
Clinica Care Thermostatic faucet - Installation
Category:
Target group:
Audio:
|
Subtitles:
Clinica Thermostatic faucet - Head part and thermostatic cartridge maintenance
Category:
Target group:
Audio:
|
Subtitles:
Clinica Thermostatic faucet - Hygienic Flush
Category:
Target group:
Audio:
|
Subtitles:

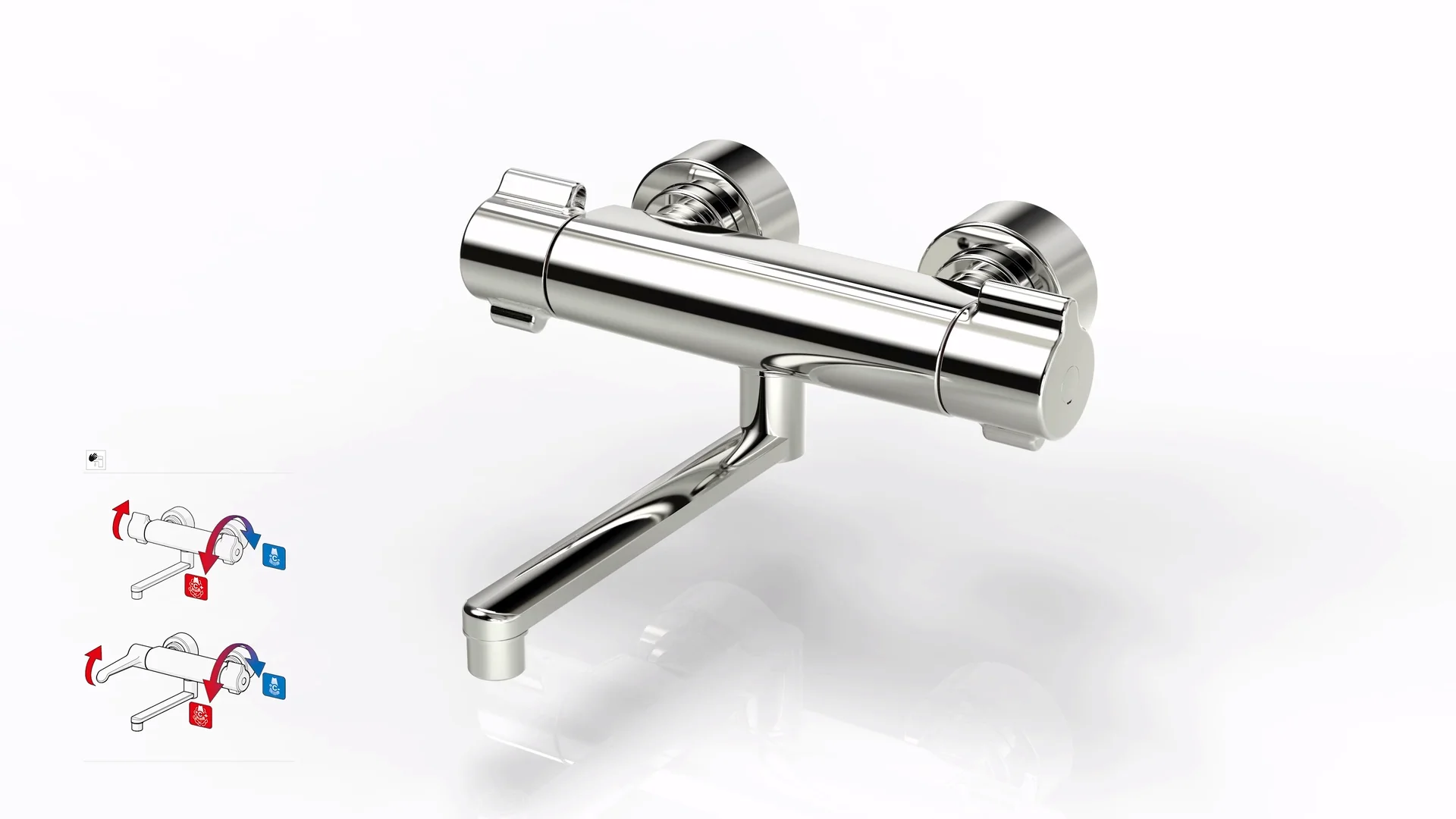

Clinica Thermostatic faucet - Operation
