Features
- Additional features protected against back-flow in domestic use (according to DIN EN 1717)
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Hot/Cold symbols, Single operating lever/handle
- Mechanical parts Litter filter(s), Non-return valve(s), ø 40 mm ceramic cartridge for flow and temperature control
- Spout Swivel spout, Pull-out model
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
- Flow-rate at 3 bar 12 l/min
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Projection 225 mm
- Working pressure 0.5 - 10 bar
Regulations
- EN standard EN 817
SP55682203 Kitchen faucet
Ask pricing from your local retailers.
Spare parts | Code | Spare part guide | ||
01 |
|
Lever (Chrome) |
|
|
02 |
|
Symbol plug |
|
|
03 |
|
Covering cap
(Chrome)
Discontinued
|
|
|
04 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
05 |
|
Cartridge, 4.0 Classic |
|
Download |
06 |
|
Spout
(Chrome)
Discontinued
|
|
|
07 |
|
O-ring, 53.64x2.62
Discontinued
|
|
|
08 |
|
Supporting plate |
|
|
09 |
|
Fixing plate with a nut |
|
|
10 |
|
Counterbalance |
|
|
11 |
|
Hose, L=1500, G1/2-M15x1 |
|
|
12 |
|
Aerator and key, M18.5x1 (Chrome) |
|
|
13 |
|
One-way valve with litter screen (Chrome) |
|

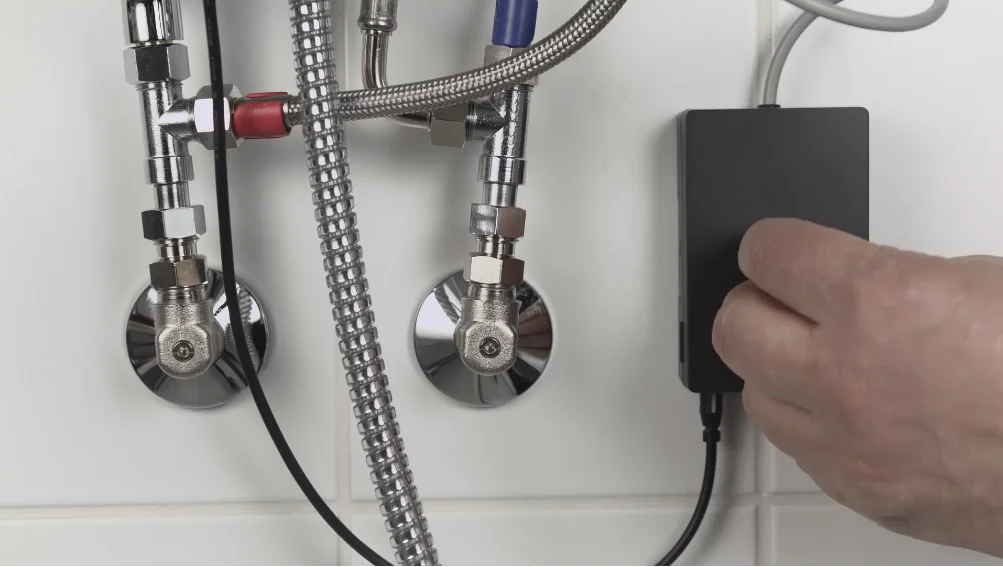

HANSASIGNATUR Changing batteries control unit
Category:
Target group:
Audio:
|
Subtitles:
HANSASIGNATUR Changing batteries hand shower holder
Category:
Target group:
Audio:
|
Subtitles:

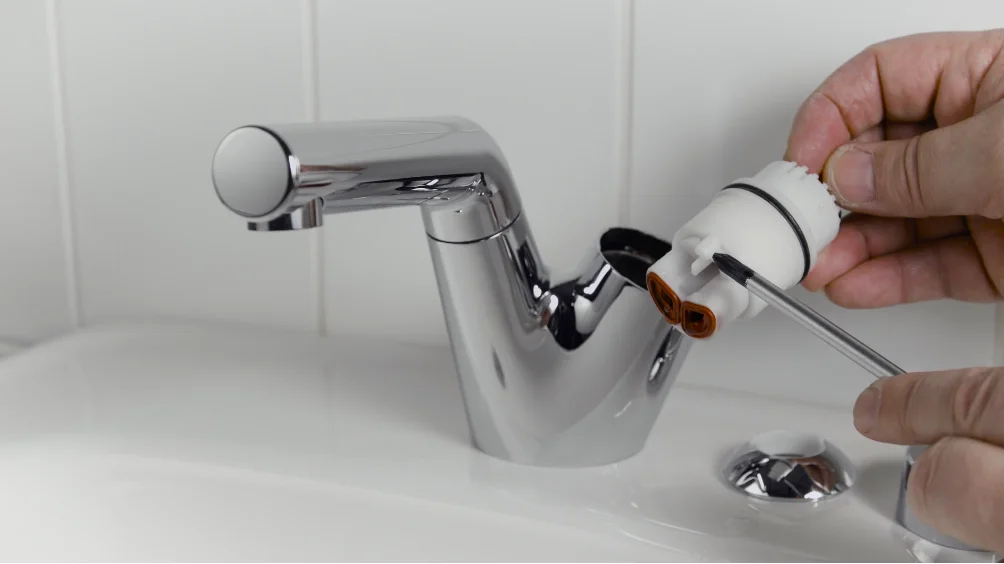

HANSASIGNATUR Changing cartridge
Category:
Target group:
Audio:
|
Subtitles:

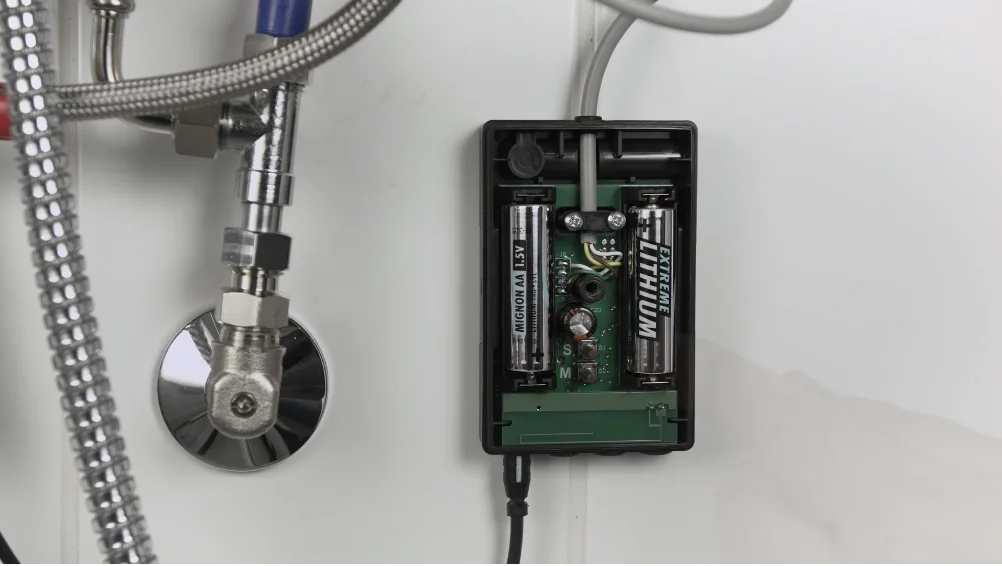

HANSASIGNATUR Changing control unit
Category:
Target group:
Audio:
|
Subtitles:

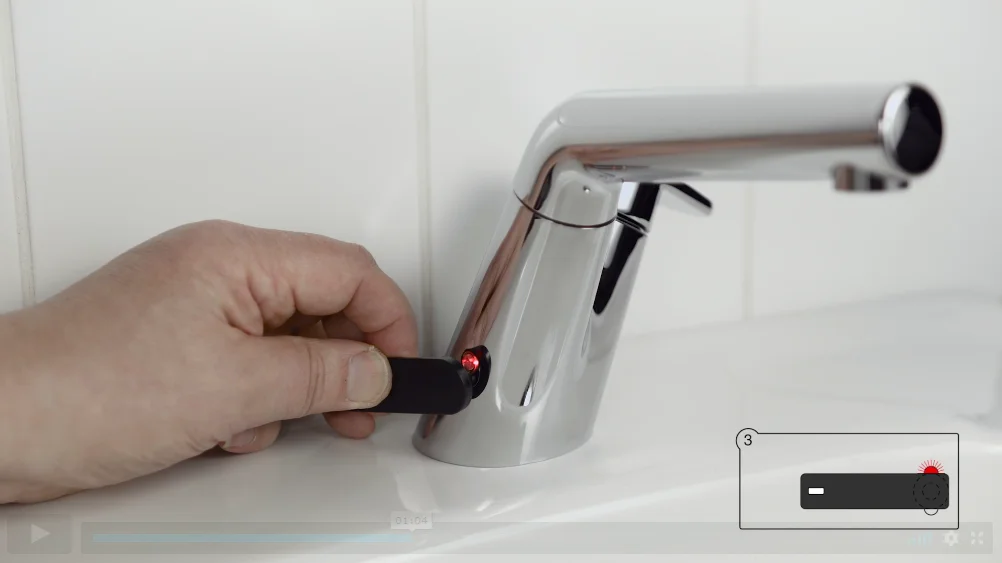

HANSASIGNATUR Changing factory settings
Category:
Target group:
Audio:
|
Subtitles:
HANSASIGNATUR Changing magnetic valve
Category:
Target group:
Audio:
|
Subtitles:
HANSASIGNATUR Changing magnetic valve membrane
Category:
Target group:
Audio:
|
Subtitles:

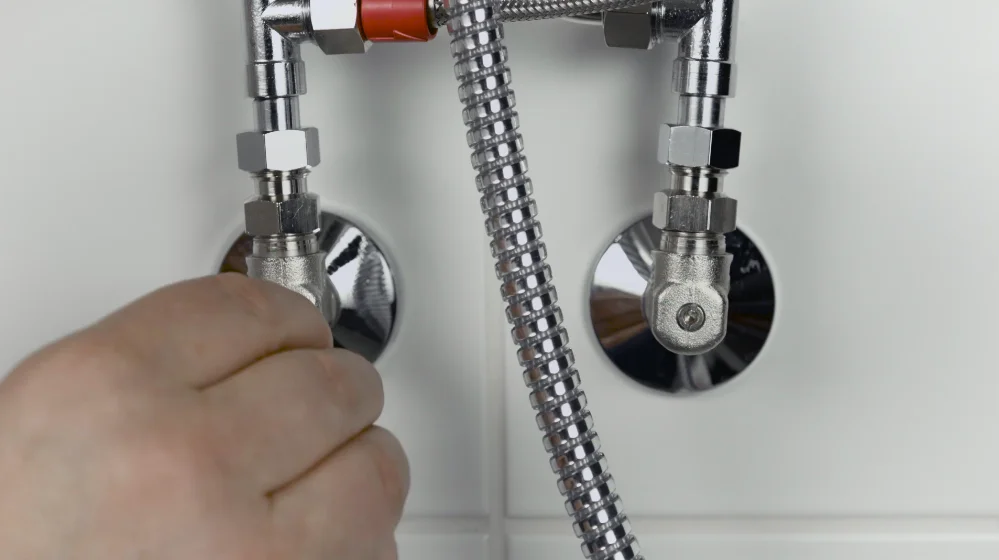

HANSASIGNATUR Changing sensor
Category:
Target group:
Audio:
|
Subtitles:

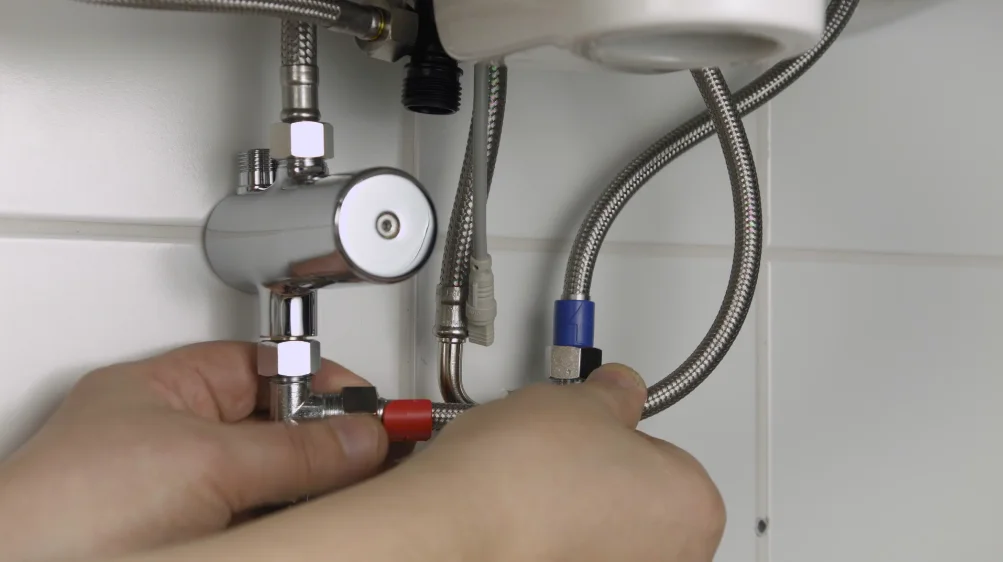

HANSASIGNATUR Installation
Category:
Target group:
Audio:
|
Subtitles:
HANSASIGNATUR Minimat
Category:
Target group:
Audio:
|
Subtitles:

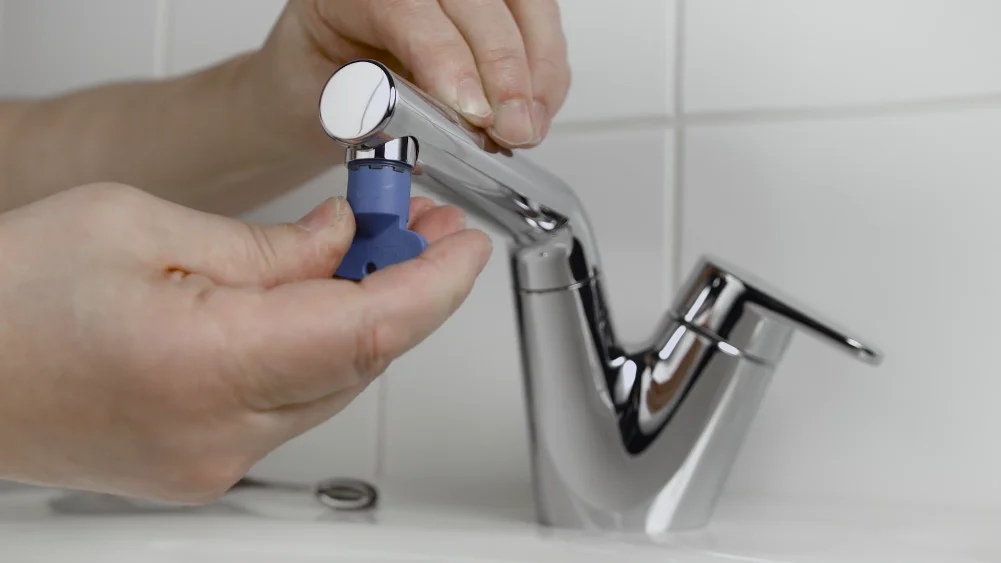

HANSASIGNATUR Servicing aerator
Category:
Target group:
Audio:
|
Subtitles:

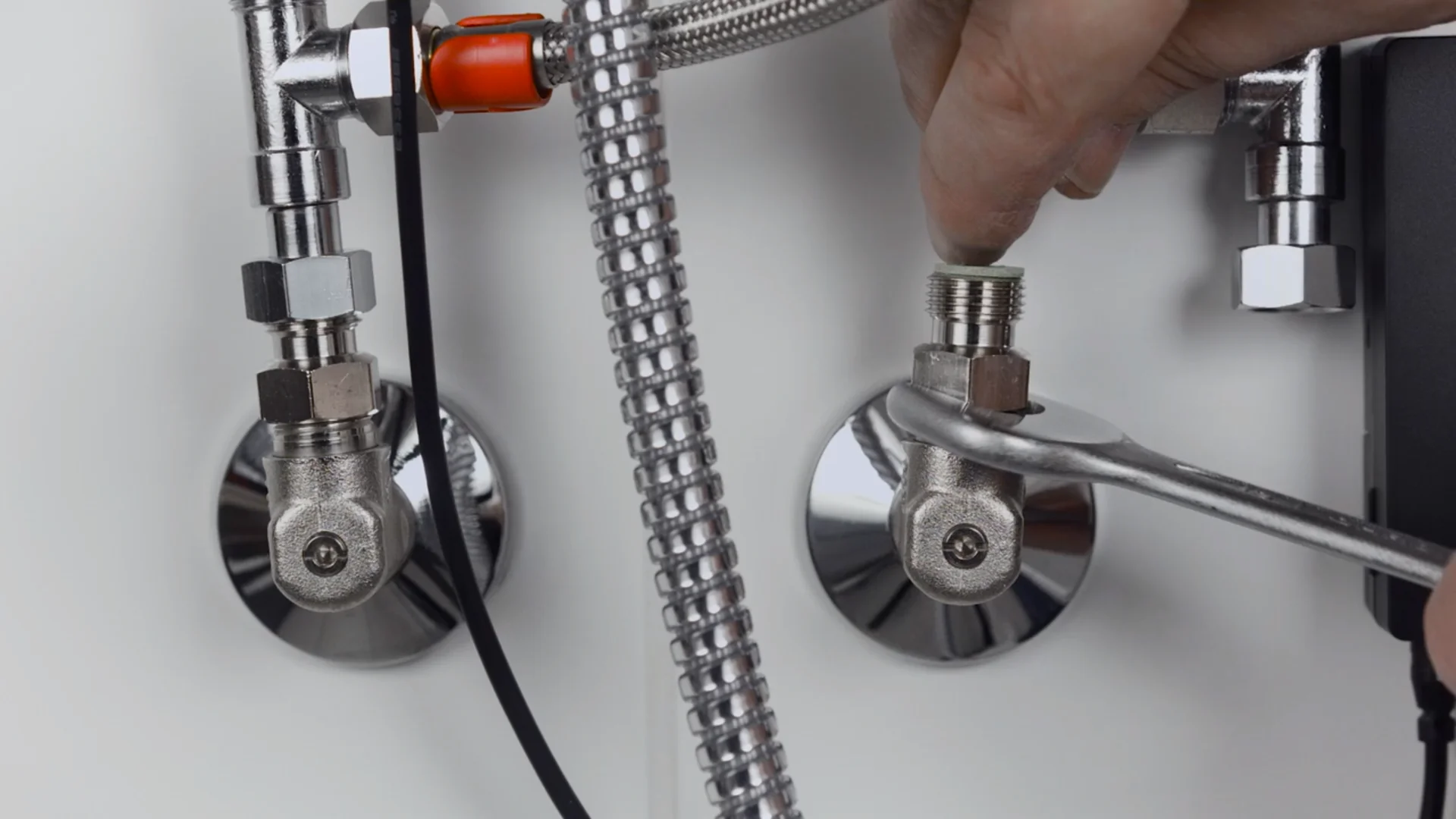

HANSASIGNATUR Servicing litter filters
Category:
Target group:
Audio:
|
Subtitles:

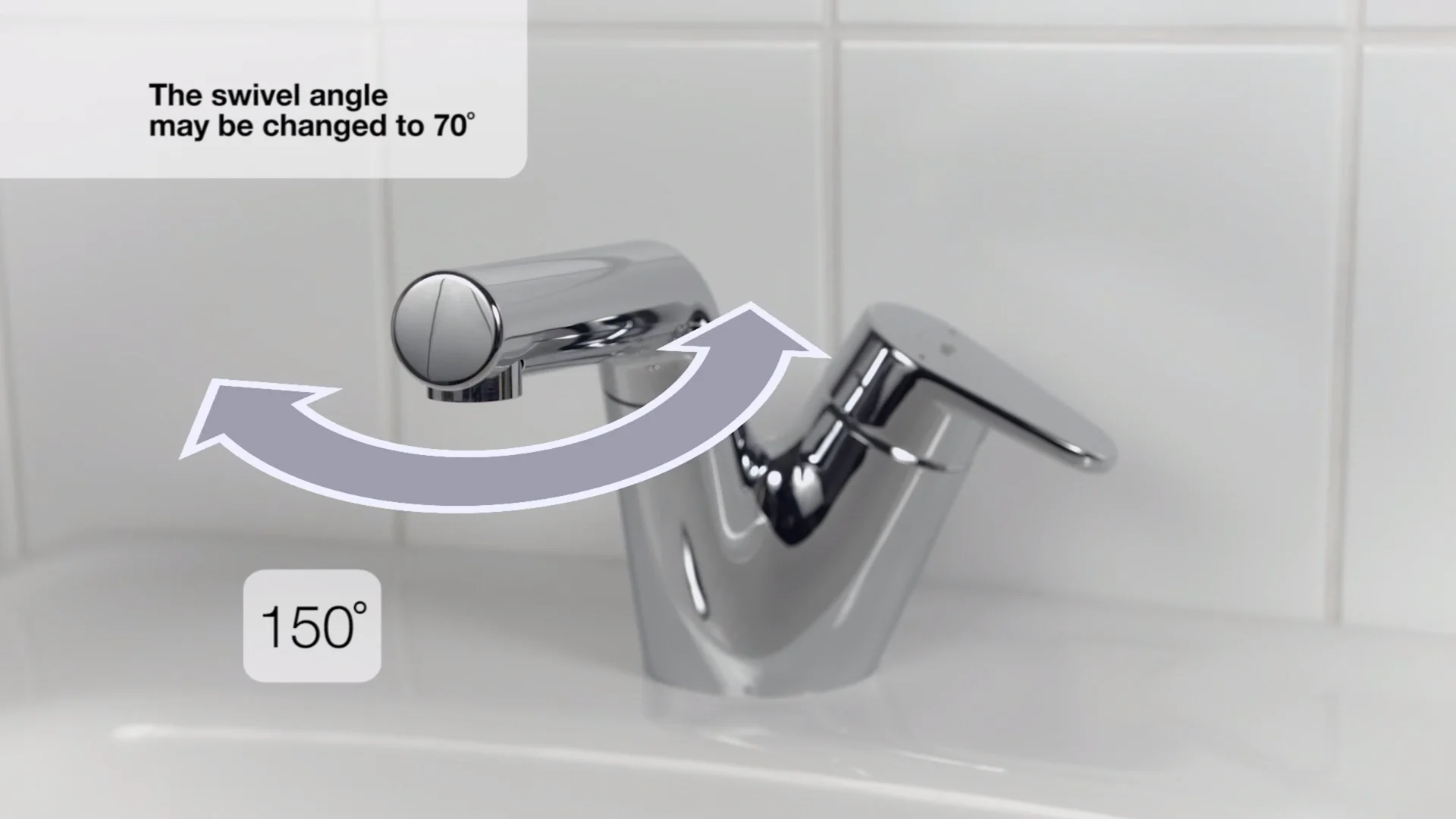

HANSASIGNATUR Spout swivel angle
